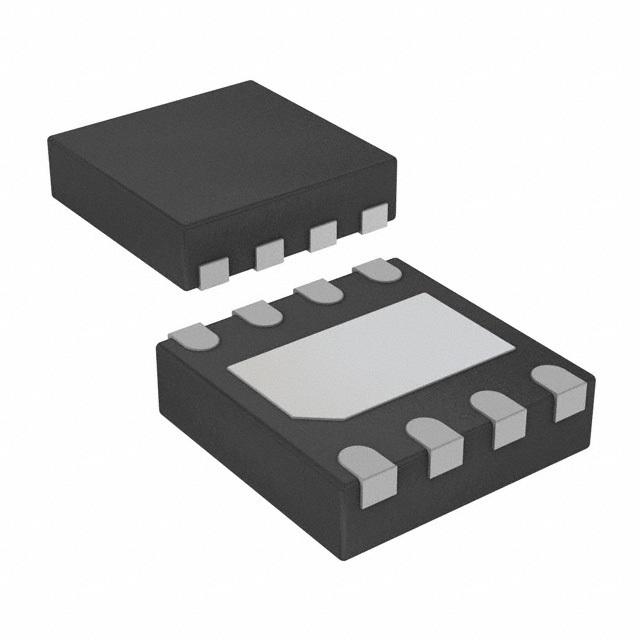

Same model may have multiple batches, images only for reference.
IP4264CZ8-10-TTL,1 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4264CZ8-10-TTL,1

Part No IP4264CZ8-10-TTL,1
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) ESD SMD
Datasheet
IP4264CZ8-10-TTL,1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 3
Resistance - Channel (Ohms) 47, 100
Values R = 47 Ohms, 100 Ohms, C = 6pF (Total)
ESD Protection Yes
Temperature Range - Operating -30°C to 85°C
Applications Data Lines for Mobile Devices
Mounting SMD (SMT)
Dimension 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045670-IP4264CZ8-10-TTL,1
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4264CZ8-10-TTL,1 CAD Model

Description

The Nexperia USA Inc. IP4264CZ8-10-TTL,1 is an RC (Pi) low pass filter designed for data lines in mobile devices.

  • Filter Type: low pass
  • Mounting Technology: SMD (SMT)
  • Channels: three channels
  • Resistance Values: 47 and 100 ohms
  • Capacitance: 6pF (total)
  • Feature: ESD protection
  • Component Status: obsolete (EOL)
  • Height: 0.022" (0.55mm)
  • Operating Temperature Range: -30°C to 85°C
  • Dimension: 0.067" L x 0.053" W (1.70mm x 1.35mm)
  • Popularity: medium
  • Supply and Demand Status: sufficient
