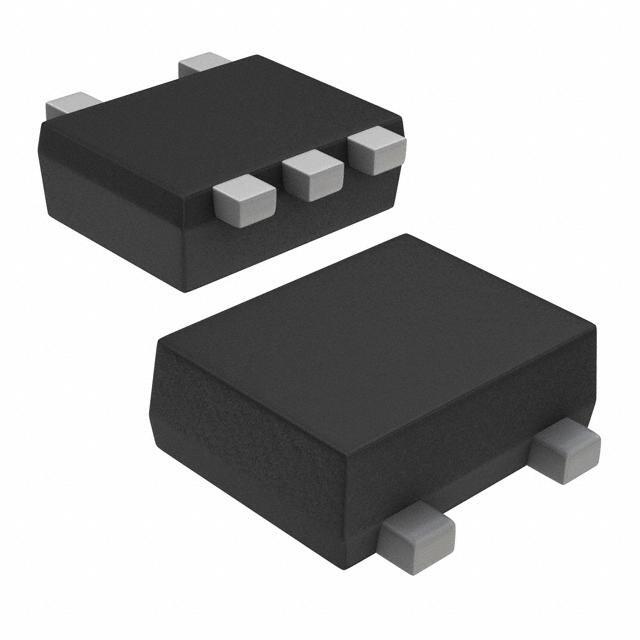

IP4256CZ5-W,115 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4256CZ5-W,115

Part No IP4256CZ5-W,115
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 100 OHM/19PF SMD / EMI Filter Low Pass RC-Circuit 25dB Flat Style SMD T/R
Datasheet
IP4256CZ5-W,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel package
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 2
Attenuation Value 20dB @ 800MHz ~ 3GHz
Resistance - Channel (Ohms) 100
Values R = 100 Ohms, C = 19pF (Total)
ESD Protection Yes
Operating Temperature Range -40°C ~ 85°C
Applications LAN, WAN
Mounting SMD
Package SOT-665
Dimension 0.063" L x 0.047" W (1.60mm x 1.20mm)
Height 0.024" (0.60mm)
Win Source Part Number 776824-IP4256CZ5-W,115
Popularity Medium
Supply and Demand Status Limited
Family Name IP4256CZ5-W
Introduction Date June 10, 2010
ECCN EAR99
Country of Origin Malaysia
Halogen Free Compliant
Estimated EOL Date 2028
Ultra Librarian 3D Model Ultra Librarian IP4256CZ5-W,115 CAD Model

Description

The Nexperia IP4256CZ5-W is a low pass filter that is designed for use in LAN and WAN applications.

  • Channels: Two
  • Attenuation: 20dB @ 800MHz ~ 3GHz
  • Resistance: 100 ohms
  • Package: SOT-665
