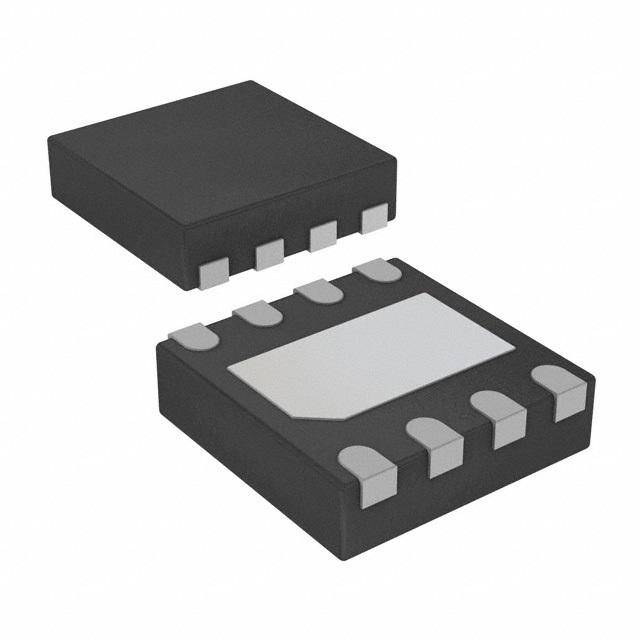

Same model may have multiple batches, images only for reference.
IP4253CZ8-4-TTL,13 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

IP4253CZ8-4-TTL,13

Part No IP4253CZ8-4-TTL,13
Manufacturer Nexperia USA Inc.
Catalog EMI/RFI Filters (LC, RC Networks)
Description FILTER RC(PI) 200 OHM/30PF SMD
Datasheet
IP4253CZ8-4-TTL,13 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Filters
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Obsolete(EOL)
Type Low Pass
Filter Order 2nd
Technology RC (Pi)
Number of Channels 4
Attenuation Value 33dB @ 800MHz to 3GHz
Resistance - Channel (Ohms) 200
Values R = 200 Ohms, C = 30pF (Total)
ESD Protection Yes
Temperature Range - Operating -40°C to 85°C
Applications LAN, WAN
Mounting SMD (SMT)
Dimension 0.067" L x 0.053" W (1.70mm x 1.35mm)
Height 0.022" (0.55mm)
Win Source Part Number 1045663-IP4253CZ8-4-TTL,13
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian IP4253CZ8-4-TTL,13 CAD Model

Description

The IP4253CZ8-4-TTL,13 from Nexperia USA Inc. is a low pass filter with a center/cutoff frequency of - and an attenuation value of 33dB @ 800MHz to 3GHz.

  • Packaging: Reel - TR
  • Mounting: SMD (SMT) technology
  • Height: 0.022" (0.55mm)
  • Technology: RC (Pi)
  • Channels: 4
