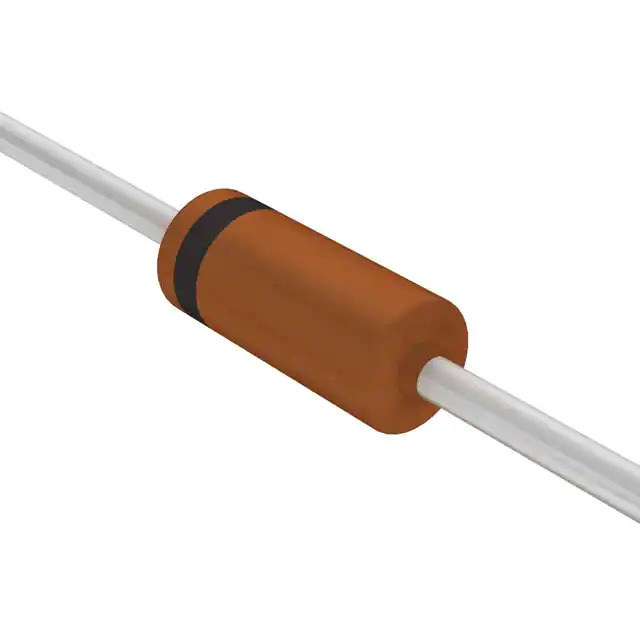

BAV20,133 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAV20,133

Part No BAV20,133
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 150V 250MA ALF2
Datasheet
BAV20,133 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Diodes - Rectifiers - Single Diodes
Mfr Nexperia USA Inc.
Series -
Product Status Active
Technology Standard
Voltage - DC Reverse (Vr) (Max) 150 V
Current - Average Rectified (Io) 250mA
Voltage - Forward (Vf) (Max) @ If 1.25 V @ 200 mA
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 50 ns
Current - Reverse Leakage @ Vr 100 nA @ 150 V
Capacitance @ Vr, F 5pF @ 0V, 1MHz
Mounting Type Through Hole
Package / Case DO-204AH, DO-35, Axial
Supplier Device Package ALF2
Operating Temperature - Junction 175°C (Max)
Base Product Number BAV20
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1368125-BAV20,133
Ultra Librarian 3D Model Ultra Librarian BAV20,133 CAD Model

Description

The BAV20 is a standard rectifier diode with a maximum reverse voltage of 150V and an average rectified current of 250mA.

  • Maximum Reverse Voltage: 150V
  • Average Rectified Current: 250mA
  • Forward Voltage: 1.25V @ 200mA
  • Recovery Time: <500ns
  • Reverse Recovery Time: 50ns
  • Package: DO-204AH
  • Mounting Type: Through-Hole
  • Capacitance: 5pF @ 0V and 1MHz
  • Operating Temperature: Up to 175°C
  • Product Status: Active
  • Manufacturer: Nexperia USA Inc.
