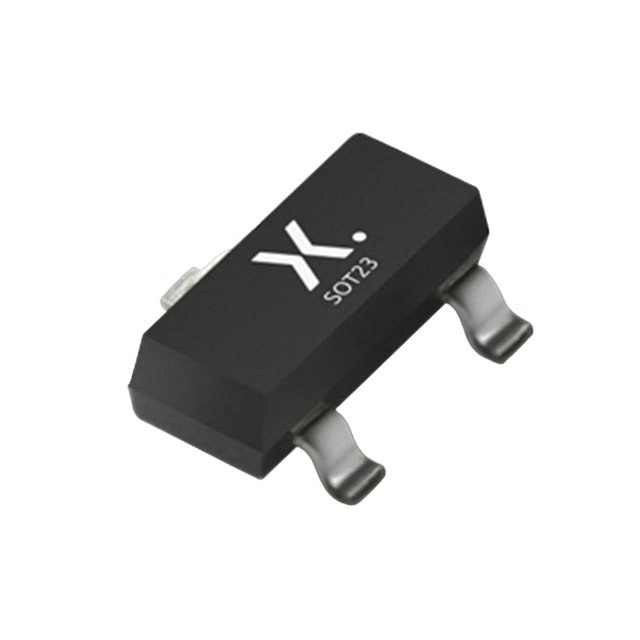

BAT754,215 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BAT754,215

Part No BAT754,215
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA SOT23
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Nexperia USA Inc.
Packaging Reel
Diode Type Schottky
Voltage - DC Reverse (Vr) (Maximum) 30V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Maximum) at If 600mV at 100mA
Current - Reverse Leakage at Vr 2μA at 25V
Capacitance at Vr, F 10pF at 1V, 1MHz
Mounting Style SMD
Manufacturer Package TO-236-3, SC-59, SOT-23-3
Supplier Device Package TO-236AB
Operating Temperature - Junction 125°C (Maximum)
Part Number Series BAT754
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 803130-BAT754,215
Ultra Librarian 3D Model Ultra Librarian BAT754,215 CAD Model

Description

The Nexperia BAT754 is a Schottky diode available in a TO-236-3, SC-59, SOT-23-3 package.

  • Maximum DC Reverse Voltage: 30V
  • Maximum Current Average Rectified: 200mA
  • Maximum Forward Voltage: 600mV @ 100mA
  • Current Reverse Leakage: 2μA @ 25V
  • Capacitance: 10pF @ 1V, 1MHz
  • Supply and Demand Status: balance
  • Manufacturer Pack Quantity: 3,000
  • MSL Level: 1 (unlimited)
