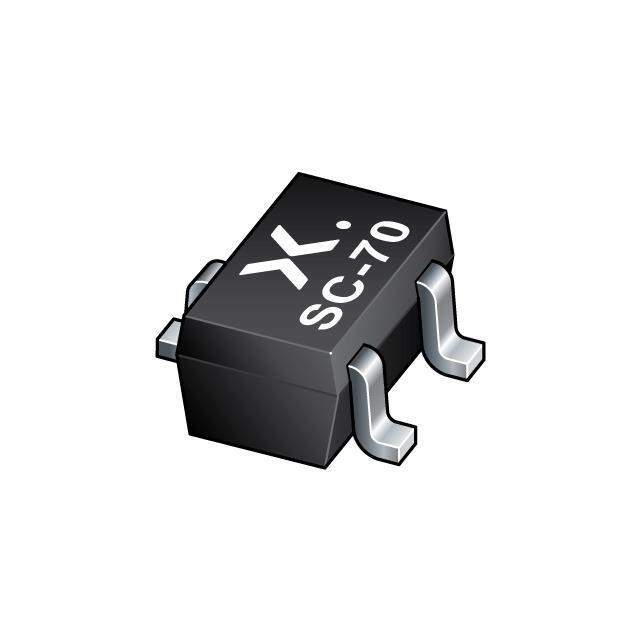

Same model may have multiple batches, images only for reference.

BAT54SWF

Name: BAT54SWF
Brand: Nexperia USA Inc.
SKU: 1131488
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	BAT54SWF
Manufacturer	Nexperia USA Inc.
Catalog	Diodes, Rectifiers - Arrays
Description	DIODE SCHOTTKY 30V 200MA SC70 / Diode Array 1 Pair Series Connection Schottky 30 V 200mA (DC) Surface Mount SC-70, SOT-323
Datasheet	BAT54SWF Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Discrete Semiconductor Products>Diodes - Rectifiers - Arrays
Mfr	Nexperia USA Inc.
Series	Automotive, AEC-Q101
Package	Tape & Reel (TR)
Diode Configuration	1 Pair Series Connection
Diode Type	Schottky
Voltage - DC Reverse (Vr) (Max)	30 V
Current - Average Rectified (Io) (per Diode)	200mA (DC)
Voltage - Forward (Vf) (Max) @ If	800 mV @ 100 mA
Speed	Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr)	5 ns
Current - Reverse Leakage @ Vr	2 µA @ 25 V
Operating Temperature - Junction	150°C (Max)
Mounting	SMD (SMT)
Package / Case	SC-70, SOT-323
Supplier Device Package	SOT-323
Base Product Number	BAT54
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8541.10.0070
Other Names	934028910135
Standard Package	10,000
Win Source Part Number	1131488-BAT54SWF
Ultra Librarian 3D Model	Ultra Librarian BAT54SWF CAD Model

Alternative Products

Description

The BAT54SWF is a Schottky diode array.

Reverse Voltage: 30 V
Forward Voltage: 800 mV @ 100 mA
Reverse Recovery Time: 5 ns
Current Leakage: 2 μA @ 25 V
Connection: Single pair series
Ideal For: Rectifiers and arrays
Package: SOT-323
Temperature Range: -55 °C to 150 °C
