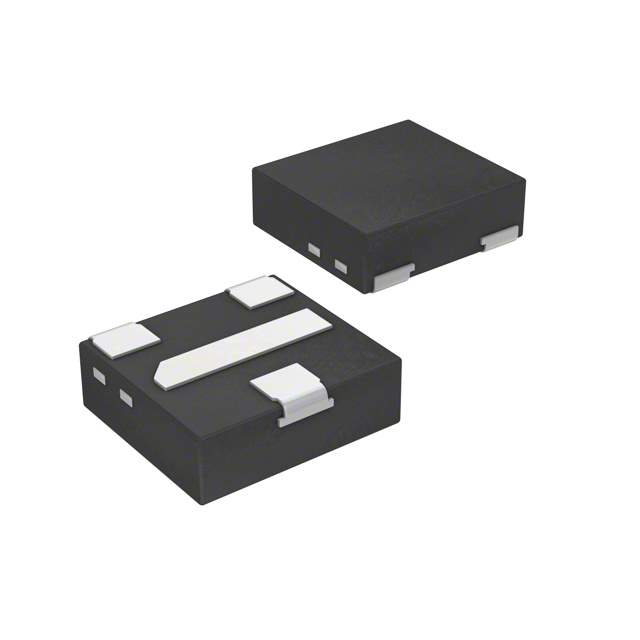

BAT54QCZ Real Image
Same model may have multiple batches, images only for reference.

BAT54QCZ

Part No BAT54QCZ
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 200MA 3DFN / Diode Schottky 30 V 200mA (DC) Surface Mount, Wettable Flank DFN1412D-3
Datasheet
BAT54QCZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Tape & Reel
Product Status Obsolete
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 200mA (DC)
Voltage - Forward (Vf) (Max) @ If 800 mV @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 5 ns
Current - Reverse Leakage @ Vr 2 µA @ 25 V
Capacitance @ Vr, F 10pF @ 1V, 1MHz
Mounting Type Surface Mount, Wettable Flank
Package / Case 3-XDFN Exposed Pad
Supplier Device Package DFN1412D-3
Operating Temperature - Junction 150°C
Base Product Number BAT54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Names 1727-BAT54QCZDKR,934660942147,1727-BAT54QCZTR,1727-BAT54QCZCT
Standard Package 5,000
Win Source Part Number 1164348-BAT54QCZ
Ultra Librarian 3D Model Ultra Librarian BAT54QCZ CAD Model

Description

The Nexperia USA Inc. BAT54QCZ is a high-quality electronic component that is ideal for use in a variety of applications.

  • Component Type: Schottky Diode
  • Application: Small Signal
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Current - Average Rectified (Io): 200mA (DC)
  • Voltage - Forward (Vf) (Max) @ If: 800 mV @ 100 mA
  • Reverse Recovery Time (trr): 5 ns
  • Manufacturer: Nexperia USA Inc.
  • Product Name: BAT54QCZ
