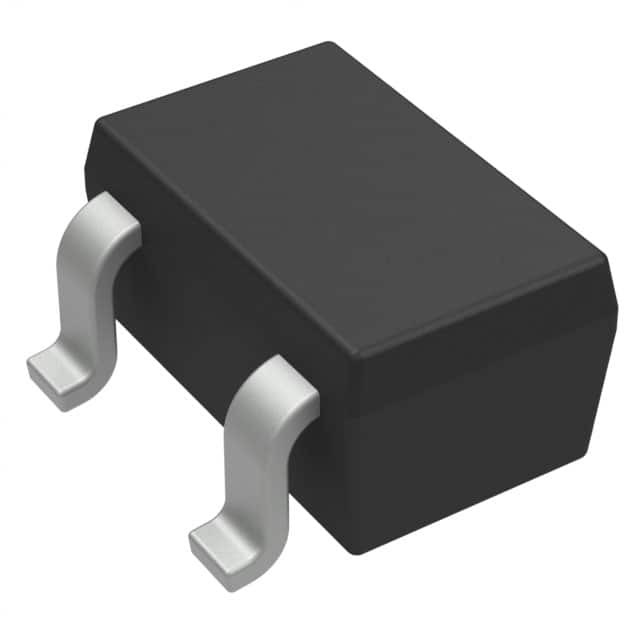

BAT54AW,115
Same model may have multiple batches, images only for reference.

BAT54AW,115

Part No BAT54AW,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 30V SOT323
Datasheet
BAT54AW,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Diode Array 1 Pair Common Anode Schottky 30 V 200mA (DC) Surface Mount SC-70, SOT-323
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Speed Small Signal =< 200mA (Io), Any Speed
Mounting Surface Mount
Package SC-70, SOT-323
Case / Package SOT-323
Family Name BAT54
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Other Part Number 1727-3567-6, 568-3413-1, 568-3413-1-ND, 1727-3567-2, 568-3413-6-ND, BAT54AW T/R, 1727-3567-1, 568-3413-2, 568-3413-2-ND, 568-3413-6, 934028890115, BAT54AW115
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 912852-BAT54AW,115
Ultra Librarian 3D Model Ultra Librarian BAT54AW,115 CAD Model

Description

The Nexperia BAT54AW,115 is a diode array of 1 pair common anode Schottky with a maximum voltage of 30 V and a maximum current of 200mA (DC).

  • Maximum Voltage: 30 V
  • Maximum Current: 200mA (DC)
  • Mounting: Surface Mount
  • Speed: Small Signal less than 200mA (Io)
  • Package: SC-70 and SOT-323 packages
  • Family: BAT54 family
  • Category: Discrete Semiconductor Products
  • Package Type: Reel - TR
  • Supply and Demand Status: Balance
  • Estimated Production Lead Time: 26 weeks
  • REACH: Unaffected
