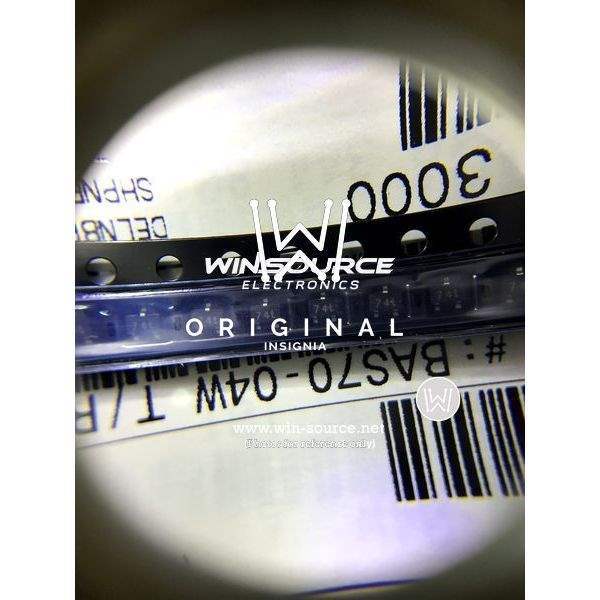

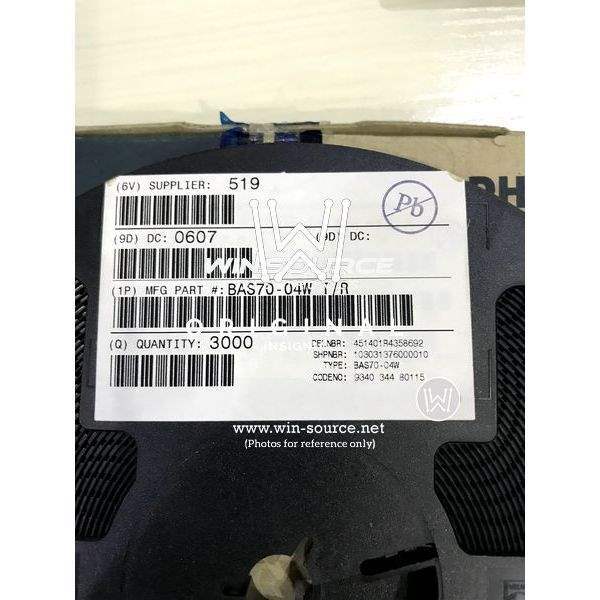

BAS70-04W,115 Nexperia USA Inc. BAS70-04W,115 label picture BAS70-04W,115 real image
Same model may have multiple batches, images only for reference.
BAS70-04W,115 Nexperia USA Inc. BAS70-04W,115 label picture BAS70-04W,115 real image
BAS70-04W,115 Nexperia USA Inc. BAS70-04W,115 label picture BAS70-04W,115 real image
Same model may have multiple batches, images only for reference.

BAS70-04W,115

Part No BAS70-04W,115
Manufacturer Nexperia USA Inc.
Catalog Diodes, Rectifiers - Arrays
Description DIODE ARRAY SCHOTTKY 70V SOT323
Datasheet
BAS70-04W,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Packaging Reel - TR
Status Active
Diode Configuration 1 Pair Series Connection
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 70V
Current - Average Rectified (Io) (per Diode) 70mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 15mA
Current - Reverse Leakage @ Vr 10μA @ 70V
Operating Temperature - Junction 150°C (Max)
Mounting SMD (SMT)
Case / Package SOT-323-3
Win Source Part Number 1022107-BAS70-04W,115
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Industrial
Ultra Librarian 3D Model Ultra Librarian BAS70-04W,115 CAD Model

Description

The Nexperia USA Inc. 1022107-BAS70-04W,115 is a Schottky diode that comes in a SOT-323-3 package.

  • Maximum DC Reverse Voltage: 70V
  • Forward Voltage: 1V @ 15mA
  • Diode Configuration: 1 Pair Series Connection
  • Average Rectified Current: 70mA per diode
  • Application: Industrial
  • Maximum Junction Temperature: 150°C
  • Supply and Demand Status: Limited
