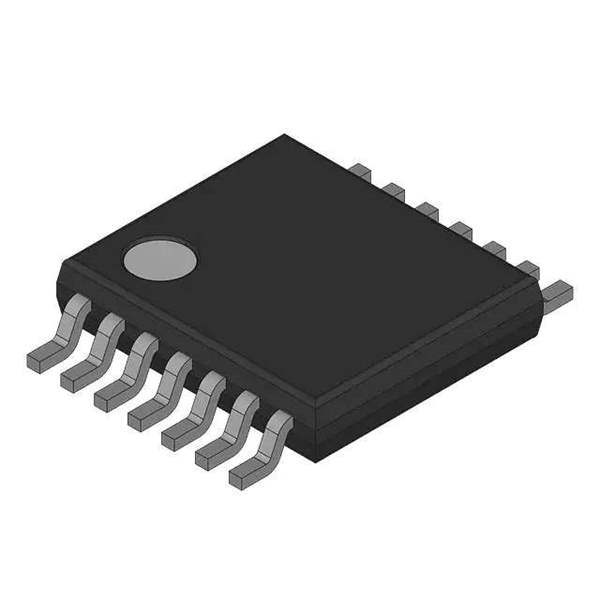

74HC86PW Real Image
Same model may have multiple batches, images only for reference.

74HC86PW

Part No 74HC86PW
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC GATE XOR 4CH 2-INP 14TSSOP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74HC
Package Bulk
Product Status Active
Logic Type XOR (Exclusive OR)
Number of Circuits 4
Number of Inputs 2
Voltage - Supply 2V ~ 6V
Current - Quiescent (Max) 2 µA
Current - Output High, Low 5.2mA, 5.2mA
Input Logic Level - Low 0.5V ~ 1.8V
Input Logic Level - High 1.5V ~ 4.2V
Max Propagation Delay @ V, Max CL 20ns @ 6V, 50pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 14-TSSOP
Package / Case 14-TSSOP (0.173", 4.40mm Width)
Base Product Number 74HC86
Standard Package 1 pcs
HTSUS 0000.00.0000
Win Source Part Number 549253-74HC86PW
Ultra Librarian 3D Model Ultra Librarian 74HC86PW CAD Model

Description

The 549253-74HC86PW is a XOR (Exclusive OR) gate integrated circuit (IC) from Nexperia USA Inc.

  • Series: 74HC
  • Circuits: 4
  • Inputs per Circuit: 2
  • Logic Type: XOR
  • Voltage Supply: 2V to 6V
  • Package: 14-TSSOP
  • Packaging: Bulk
  • Propagation Delay: 20ns @ 6V and 50pF load (maximum)
