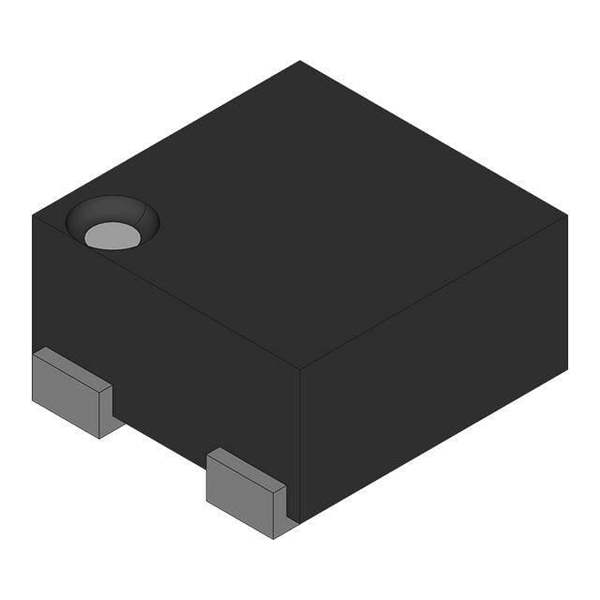

74AUP1G14GX,125 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

74AUP1G14GX,125

Part No 74AUP1G14GX,125
Manufacturer Nexperia USA Inc.
Catalog Logic - Gates and Inverters
Description IC INVERT SCHMITT 1CH 1IN 5X2SON
Datasheet
74AUP1G14GX,125 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Logic - Gates and Inverters
Mfr Nexperia USA Inc.
Series 74AUP
Package Tape & Reel
Product Status Active
Logic Type Inverter
Number of Circuits 1
Number of Inputs 1
Features Schmitt Trigger
Voltage - Supply 0.8V ~ 3.6V
Current - Quiescent (Max) 500 nA
Current - Output High, Low 4mA, 4mA
Input Logic Level - Low 0.1V ~ 0.88V
Input Logic Level - High 0.6V ~ 2.29V
Max Propagation Delay @ V, Max CL 6.1ns @ 3.3V, 30pF
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Supplier Device Package 5-X2SON (0.80x0.80)
Package / Case 4-XFDFN Exposed Pad
Base Product Number 74AUP1G14
Standard Package 10,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 1040125-74AUP1G14GX,125
Ultra Librarian 3D Model Ultra Librarian 74AUP1G14GX,125 CAD Model

Description

The 1040125-74AUP1G14GX,125 is a single inverter integrated circuit (IC) from the 74AUP series of logic gates and inverters.

  • Manufacturer: Nexperia USA Inc.
  • Functionality: Schmitt trigger
  • Package: Tape & reel
  • Standard Package: 10,000 pieces
  • Package: 4-XFDFN exposed pad
  • Mounting: Surface mount
  • ECCN: EAR99
  • Counterfeit Threat: 44%
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8542.39.0001
  • Status: Active
