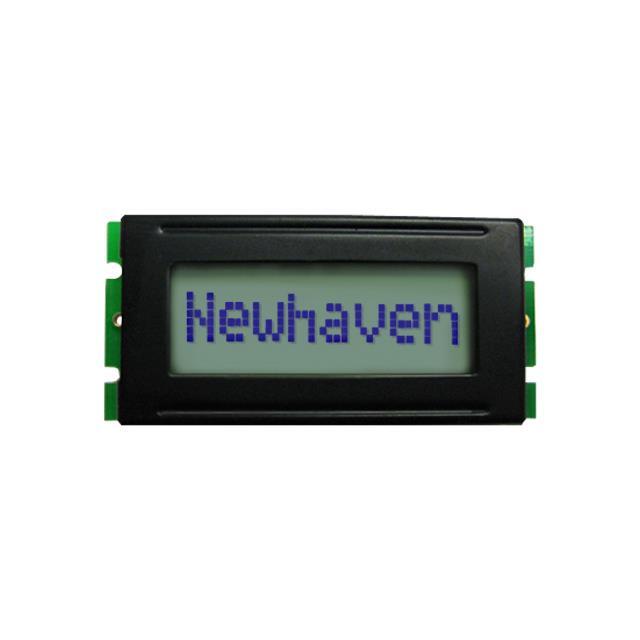

NHD-0216XZ-FSW-GBW

Part No NHD-0216XZ-FSW-GBW
Manufacturer Newhaven
Catalog Display Modules - LCD, OLED Character and Numeric
Description LCD MOD 32DIG 16X2 TRANSFLCT WHT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Number of Characters 32.0
Display Format 16 x 2
Character Format 5 x 8 Dots
Display Type STN - Super-Twisted Nematic
Display Mode Transflective
Character Size 4.35mm H x 2.95mm W
Outline L x W x H 80.00mm x 36.00mm x 12.50mm
Viewing Area 64.50mm L x 13.80mm W
Backlight LED - White
Voltage - Supply 4.7V ~ 5.5V
Dot Size 0.50mm W x 0.55mm H
Interface Parallel
Controller Type SPLC780D OR ST7066U
Temperature Range - Operating -20°C ~ 70°C
Text Color Blue
Background Color White
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1565474-NHD-0216XZ-FSW-GBW
Ultra Librarian 3D Model Ultra Librarian NHD-0216XZ-FSW-GBW CAD Model
