Same model may have multiple batches, images only for reference.

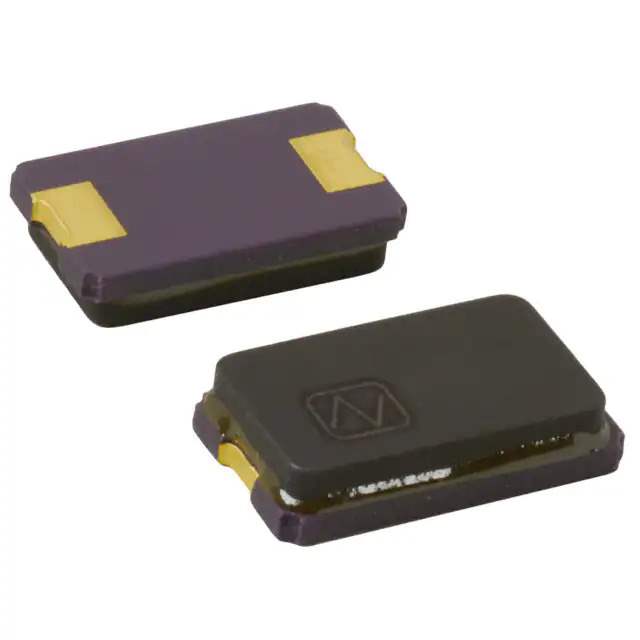

NX8045GB-32.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-32.000000MHZ

Part No NX8045GB-32.000000MHZ
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 32.0000MHZ 8PF SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX8045GB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 32 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 849156-NX8045GB-32.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX8045GB-32.000000MHZ CAD Model

Description

The NX8045GB-32.000000MHZ is a MHz crystal from NDK.

  • Series: NX8045GB
  • Size: 0.315" L x 0.177" W
  • Seated Height: 0.079"
  • Frequency: 32 MHz
  • ESR: 50 Ohms
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±50ppm
  • Mounting Type: surface mount
  • Package: 2-SMD, no lead
  • Operating Temperature: -10°C to 70°C
