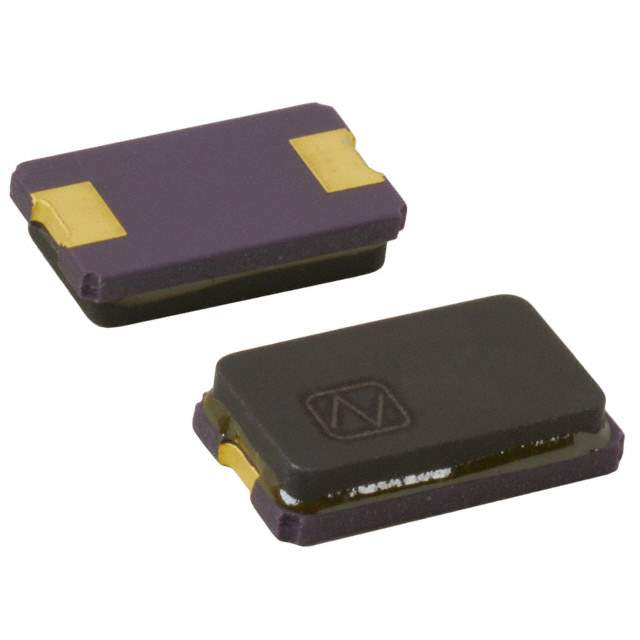

NX8045GB-25.000000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX8045GB-25.000000MHZ

Part No NX8045GB-25.000000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 25.0000MHZ 8PF SMD / 25 MHz ±50ppm Crystal 8pF 50 Ohms 2-SMD, No Lead
Datasheet
NX8045GB-25.000000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Crystals
Mfr NDK America, Inc.
Series NX8045GB
Package Tape & Reel
Product Status Not For New Designs
Type MHz Crystal
Frequency 25 MHz
Frequency Stability ±50ppm
Frequency Tolerance ±50ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 50 Ohms
Operating Mode Fundamental
Temperature Range - Operating -10°C ~ 70°C
Mounting SMD (SMT)
Package / Case 2-SMD, No Lead
Dimension 0.315" L x 0.177" W (8.00mm x 4.50mm)
Height - Seated (Max) 0.079" (2.00mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Other Names Q7413848,644-1028-2,NX8045GB25000000MHZ,644-1028-1,50157435,NX8045GB-25.000000MHZ-LN-CF-001,644-1028-6
Standard Package 1,000
Win Source Part Number 1083034-NX8045GB-25.000000MHZ
Ultra Librarian 3D Model Ultra Librarian NX8045GB-25.000000MHZ CAD Model

Description

The NDK America, Inc. NX8045GB-25.000000MHZ is a MHz crystal that is designed to provide reliable performance and long-lasting durability.

  • Frequency: 25 MHz
  • Frequency Tolerance: ±50ppm
  • Load Capacitance: 8pF
  • ESR: 50 Ohms
  • Frequency Stability: ±50ppm
  • Package/Case: 2-SMD, No Lead
  • Height-Seated (Max): 0.079" (2.00mm)
  • Operating Temperature Range: -10°C ~ 70°C
  • Dimension: 0.315" L x 0.177" W (8.00mm x 4.50mm)
  • Win Source part number: 1083034-NX8045GB-25.000000MHZ
