Same model may have multiple batches, images only for reference.

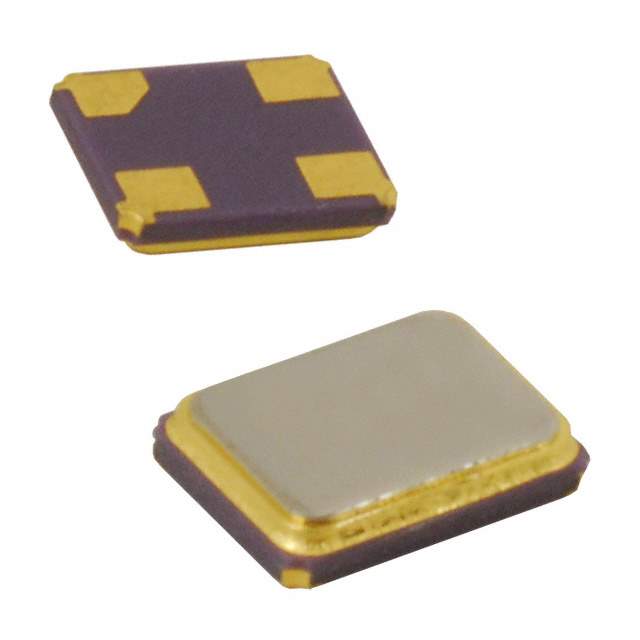

NX2520SA-24.576000MHZ Real Image
Same model may have multiple batches, images only for reference.

NX2520SA-24.576000MHZ

Part No NX2520SA-24.576000MHZ
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 24.5760MHZ 10PF SMD
Datasheet
NX2520SA-24.576000MHZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer NDK America, Inc.
Series NX2520SA
Packaging Reel package
Type MHz Crystal
Frequency 24.576MHz
Frequency Stability ±10ppm
Frequency Tolerance ±10ppm
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 70 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 60°C
Mounting SMD
Package 4-SMD, No Lead
Dimension 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum) 0.026" (0.65mm)
Win Source Part Number 761879-NX2520SA-24.576000MHZ
Popularity Medium
Supply and Demand Status Limited
ECCN EAR99
Estimated EOL Date Not Applicable
Ultra Librarian 3D Model Ultra Librarian NX2520SA-24.576000MHZ CAD Model

Description

The NX2520SA-24.576000MHZ is a 24.576MHz MHz crystal oscillator from NDK America, Inc.

  • Package: 4-SMD, no lead
  • Frequency Tolerance: ±10ppm
  • Frequency Stability: ±10ppm
  • ESR: 70 Ohm
  • Operating Mode: Fundamental
  • Load Capacitance: 10pF
  • Temperature Range: -10°C ~ 60°C
  • Popularity: Popular
  • Supply and Demand Status: Limited
