Same model may have multiple batches, images only for reference.

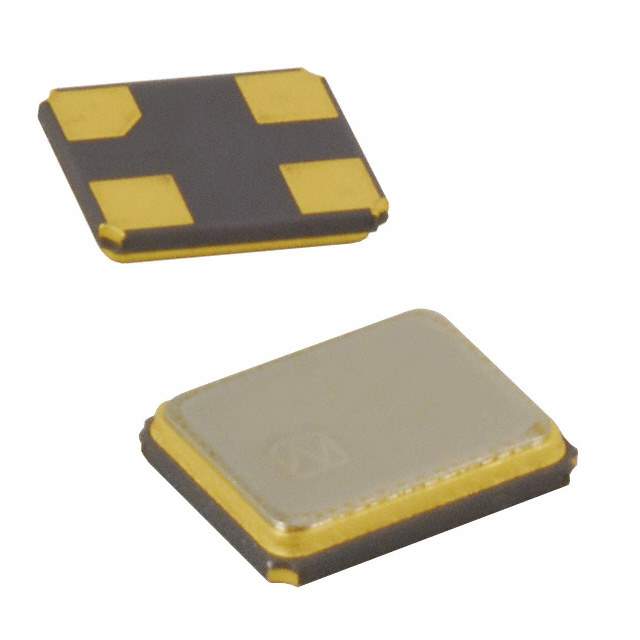

NX2016SA-32M-EXS00A-CS06465 Real Image
Same model may have multiple batches, images only for reference.

NX2016SA-32M-EXS00A-CS06465

Part No NX2016SA-32M-EXS00A-CS06465
Manufacturer NDK
Catalog Crystals
Description CRYSTAL 32.0000MHZ 10PF SMD
Datasheet
NX2016SA-32M-EXS00A-CS06465 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 2000611-NX2016SA-32M-EXS00A-CS06465
Win Source Part Number Cross
Manufacturer NDK America, Inc.
Category Crystals, Oscillators, Resonators Crystals
Series NX2016SA
Package Tape & Reel (TR) Cut Tape (CT)
Product Status Active
Type MHz Crystal
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
Package / Case 4-SMD, No Lead
Ultra Librarian 3D Model Ultra Librarian NX2016SA-32M-EXS00A-CS06465 CAD Model

Description

The NX2016SA is a 32 MHz crystal manufactured by NDK America, Inc. It falls under the category of Crystals, Oscillators, Resonators Crystals and is available in tape & reel, cut tape, and Digi-Reel package options. The package is 4-SMD, No Lead, and the size/dimension is 0.079" L x 0.063" W (2.00mm x 1.60mm) with a seated height of 0.020" (0.50mm). This MHz crystal is an active product and is ideal for use in various electronic applications.
