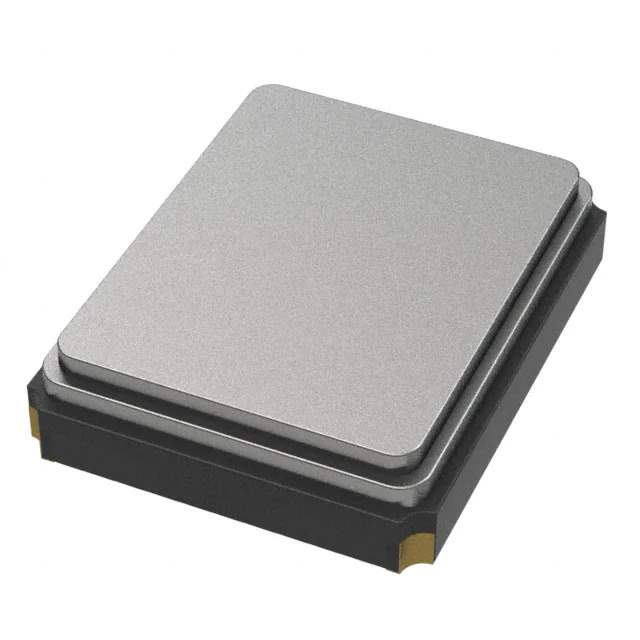

NX2016SA-27.12MHZ-EXS00A-CS06346 Real Image
Same model may have multiple batches, images only for reference.

NX2016SA-27.12MHZ-EXS00A-CS06346

Part No NX2016SA-27.12MHZ-EXS00A-CS06346
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 27.1200MHZ 10PF SMD / 27.12 MHz Crystal 10pF 60 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX2016SA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 27.12 MHz
Load Capacitance 10pF
ESR (Equivalent Series Resistance) 60 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 918813-NX2016SA-27.12MHZ-EXS00A-CS06346
Ultra Librarian 3D Model Ultra Librarian NX2016SA-27.12MHZ-EXS00A-CS06346 CAD Model

Description

The 918813-NX2016SA-27.12MHZ-EXS00A-CS06346 is a MHz crystal from the NX2016SA series.

  • Series: NX2016SA
  • Packaging: Tape & reel
  • Size: 0.079" L x 0.063" W (2.00mm x 1.60mm)
  • Maximum Seated Height: 0.020" (0.50mm)
  • Standard Package: 3,000 pcs
  • AEC-Q200: Rated
  • Frequency: 27.12 MHz
  • ESR (Equivalent Series Resistance): 60 Ohms
  • Mode: Fundamental
  • Mounting Type: Surface Mount
  • Temperature Range: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS code: 8541.60.0060
  • Manufacturer: NDK
