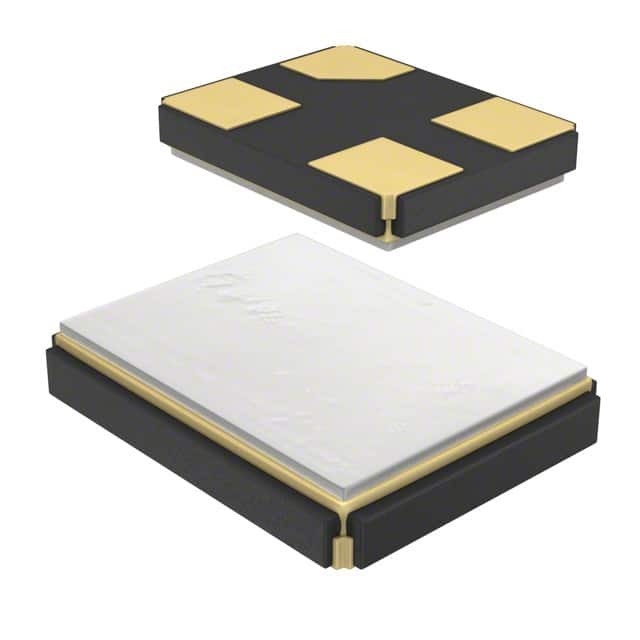

Part No NX2016SA-26MHZ-EXS00A-CS06025
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 26.0000MHZ 8PF SMD
Datasheet
NX2016SA-26MHZ-EXS00A-CS06025 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX2016SA
Package Tape & Reel
Product Status Active
Type MHz Crystal
Frequency 26 MHz
Frequency Stability ±20ppm
Frequency Tolerance ±15ppm
Load Capacitance 8pF
ESR (Equivalent Series Resistance) 100 Ohms
Operating Mode Fundamental
Temperature Range - Operating -20°C ~ 70°C
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 851511-NX2016SA-26MHZ-EXS00A-CS06025
Ultra Librarian 3D Model Ultra Librarian NX2016SA-26MHZ-EXS00A-CS06025 CAD Model

Description

The NX2016SA 26MHz crystal is a compact and reliable component used in electronic devices. Bold the product name: NX2016SA 26MHz crystal and manufacturer: NDK.

  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Dimensions: 0.079" L x 0.063" W
  • Seated Height: 0.020"
  • Frequency Stability: ±20ppm
  • Frequency Tolerance: ±15ppm
  • Load Capacitance: 8pF
  • ESR: 100 Ohms
  • Operating Mode: Fundamental
  • Operating Temperature: -20°C to 70°C
  • Product Status: Active
  • Series: NX2016SA
