Same model may have multiple batches, images only for reference.

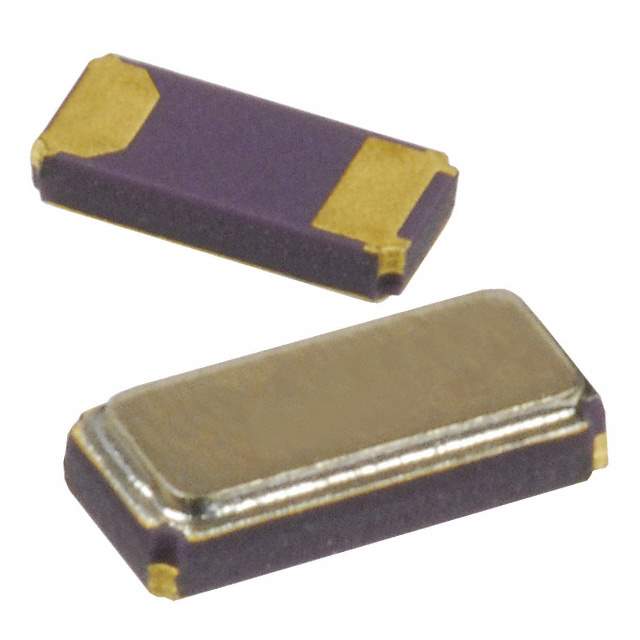

NX2012SA-32.768KHZ-EXS00A-MU00530 Real Image
Same model may have multiple batches, images only for reference.

NX2012SA-32.768KHZ-EXS00A-MU00530

Part No NX2012SA-32.768KHZ-EXS00A-MU00530
Manufacturer NDK
Catalog Oscillators
Description CRYSTAL 32.7680KHZ 7PF SMD / 32.768 kHz Crystal 7pF 80 kOhms 2-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Crystals
Mfr NDK
Series NX2012SA
Package Tape & Reel
Product Status Active
Type kHz Crystal (Tuning Fork)
Frequency 32.768 kHz
Load Capacitance 7pF
ESR (Equivalent Series Resistance) 80 kOhms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 85°C
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Size / Dimension 0.081" L x 0.047" W (2.05mm x 1.20mm)
Height - Seated (Max) 0.022" (0.55mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0010
Win Source Part Number 871333-NX2012SA-32.768KHZ-EXS00A-MU00530
Ultra Librarian 3D Model Ultra Librarian NX2012SA-32.768KHZ-EXS00A-MU00530 CAD Model

Description

The NX2012SA-32.768KHZ-EXS00A-MU00530 is a kHz Crystal (Tuning Fork) from NDK.

  • Manufacturer: NDK
  • Series: NX2012SA
  • Application: Crystal, Oscillator, and Resonator
  • Frequency: 32.768 kHz
  • ESR: 80 kOhms
  • Operating Temperature: -40°C to 85°C
  • Mounting Type: Surface Mount
  • Package: Tape and Reel
  • Size: 0.081" L x 0.047" W (2.05mm x 1.20mm)
  • Height: 0.022" (0.55mm)
  • Standard Package: 3,000 pcs
