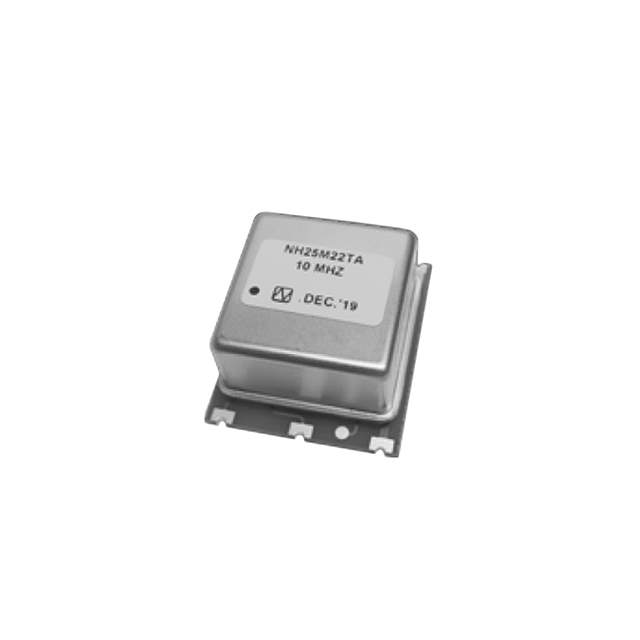

NH25M22TA-10M-NSA3566A Real Image
Same model may have multiple batches, images only for reference.

NH25M22TA-10M-NSA3566A

Part No NH25M22TA-10M-NSA3566A
Manufacturer NDK
Catalog Oscillators
Description XTAL OSC OCXO 10.0000MHZ LVCMOS / 10 MHz OCXO LVCMOS Oscillator 3.3V 7-SMD, No Lead
Datasheet
NH25M22TA-10M-NSA3566A Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr NDK America, Inc.
Series NH25M22TA
Package Tape & Reel
Product Status Obsolete
Base Resonator Crystal
Type OCXO
Frequency 10 MHz
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±3ppb
Temperature Range - Operating -40°C ~ 85°C
Mounting SMD (SMT)
Package / Case 7-SMD, No Lead
Dimension 1.000" L x 0.866" W (25.40mm x 22.00mm)
Height - Seated (Max) 0.484" (12.30mm)
MSL Level 3 (168 Hours)
ECCN EAR99
HTSUS 8542.39.0001
Other Names 644-1295-1,644-1295-2,644-1295-6
Standard Package 100
Win Source Part Number 1082085-NH25M22TA-10M-NSA3566A
Ultra Librarian 3D Model Ultra Librarian NH25M22TA-10M-NSA3566A CAD Model

Description

The NH25M22TA OCXO oscillator is a high precision frequency source designed for use in demanding applications.

  • Frequency: 10 MHz
  • Frequency Stability: ±3ppb
  • Operating Temperature Range: -40°C to 85°C
  • Package: 7-SMD, No Lead
  • Dimensions: 1.000" L x 0.866" W (25.40mm x 22.00mm)
  • Format: Tape and reel
  • Output: LVCMOS
  • Voltage Supply: 3.3V
  • Manufacturer: NDK America, Inc.
  • Status: Obsolete
  • Alternative parts that cross-reference with this oscillator include: 644-1295-1, 644-1295-2, and 644-1295-6.
