CS11321-25M NDK – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

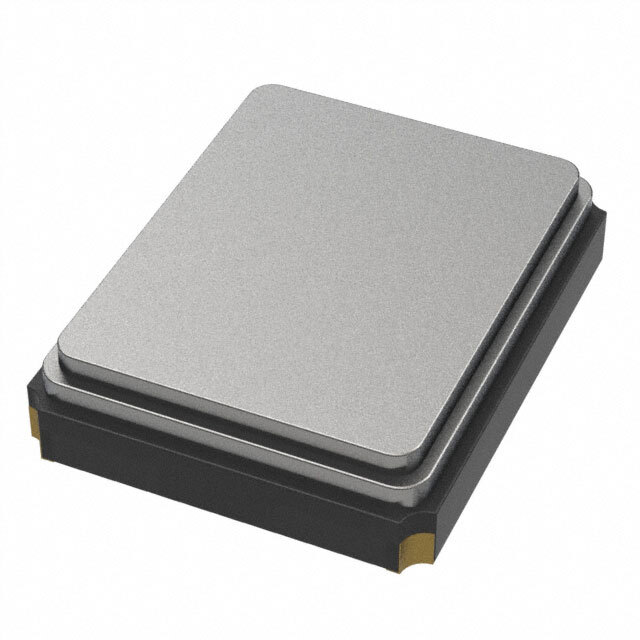

CS11321-25M

Part No CS11321-25M
Manufacturer NDK
Catalog Oscillators
Description 25 MHz Crystal 6pF 80 Ohms 4-SMD, No Lead
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr NDK America, Inc.
Series NX2016SA
Packaging Reel - TR
Type MHz Crystal
Frequency 25 MHz
Load Capacitance 6pF
ESR (Equivalent Series Resistance) 80 Ohms
Operating Mode Fundamental
Temperature Range - Operating -40°C ~ 125°C
Ratings AEC-Q200
Mounting Type Surface Mount
Package / Case 4-SMD, No Lead
Size / Dimension 0.079" L x 0.063" W (2.00mm x 1.60mm)
Height - Seated (Max) 0.020" (0.50mm)
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.60.0060
Win Source Part Number 1478189-CS11321-25M
Ultra Librarian 3D Model Ultra Librarian CS11321-25M CAD Model
