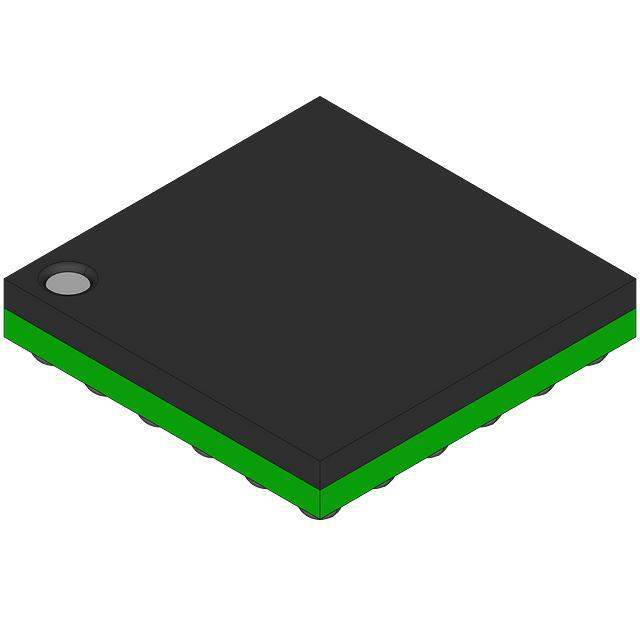

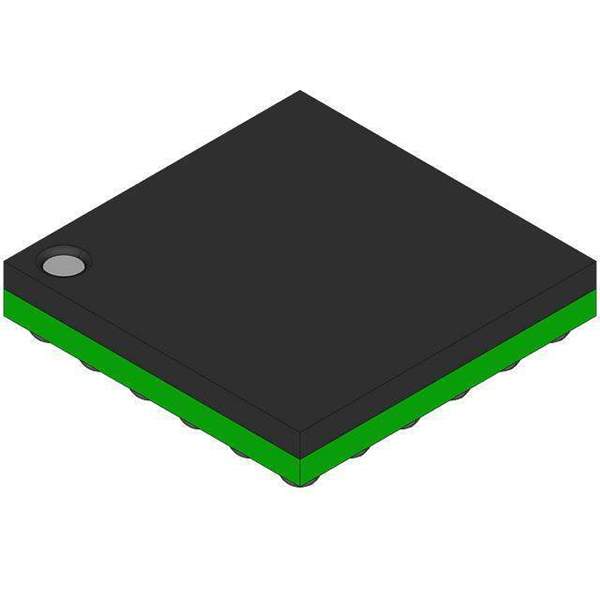

LP39542TL/NOPB Real Image
Same model may have multiple batches, images only for reference.

LP39542TL/NOPB

Part No LP39542TL/NOPB
Manufacturer National Semiconductor (TI)
Catalog PMIC - LED Drivers
Description IC LED DRVR RGLTR PWM 36DSBGA / LED Driver IC 13 Output DC DC Regulator Step-Up (Boost) PWM Dimming 900mA (Switch) 36-DSBGA
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs)>PMIC - LED Drivers
Mfr National Semiconductor
Package Bulk
Type DC DC Regulator
Topology Step-Up (Boost)
Internal Switch(s) Yes
Number of Outputs 13
Voltage - Supply (Min) 3V
Voltage - Supply (Max) 5.5V
Voltage - Output 4V ~ 5.3V
Current - Output / Channel 900mA (Switch)
Frequency 2MHz
Dimming PWM
Applications Backlight, Camera Flash
Temperature Range - Operating -30°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 36-WFBGA, DSBGA
Supplier Device Package 36-DSBGA
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Other Names NATNSCLP39542TL/NOPB,2156-LP39542TL/NOPB
Standard Package 250
Win Source Part Number 999883-LP39542TL/NOPB
Ultra Librarian 3D Model Ultra Librarian LP39542TL/NOPB CAD Model

Description

The LP39542TL/NOPB is a DC DC Regulator that is designed for integrated circuits.

  • Applications: Backlight and camera flash
  • Voltage Output: 4V to 5.3V
  • Frequency: 2MHz
  • Current Output/Channel: 900mA
  • Features: Internal Switch
  • Topology: Step-up (boost)
  • Outputs: 13
  • Dimming: PWM
  • Voltage Supply: 3V to 5.5V
  • Package/Case: 36-WFBGA, DSBGA
  • Supplier Device Package: 36-DSBGA
  • Operating Temperature: -30°C to 85°C (TA)
  • Manufacturer: National Semiconductor
