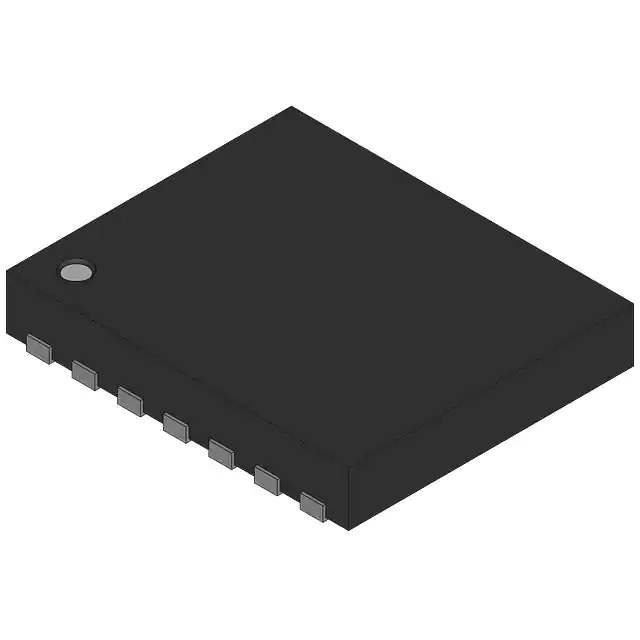

LP3946LD Real Image
Same model may have multiple batches, images only for reference.

LP3946LD

Part No LP3946LD
Manufacturer National Semiconductor (TI)
Catalog PMIC - Battery Chargers
Description IC BATT CHG PWR MGMT CIRC PDS014
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Power Management (PMIC) - Battery Chargers
Mfr National Semiconductor (TI)
Series LP3946
Package Bulk
Product Status Active
Battery Chemistry Lithium Ion/Polymer
Number of Cells 4
Current - Charging Constant - Programmable
Programmable Features Current, Timer, Voltage
Fault Protection Over Current, Over Temperature
Charge Current - Max 950mA
Battery Pack Voltage 4.1V, 4.2V
Voltage - Supply (Max) 6V
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting Type Surface Mount
Package / Case 14-WFDFN Exposed Pad
Supplier Device Package 14-WSON (4x4)
Base Product Number LP3946
Standard Package 342 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 828122-LP3946LD
Ultra Librarian 3D Model Ultra Librarian LP3946LD CAD Model

Description

The 828122-LP3946LD is a battery charger integrated circuit (IC) from the LP3946 series.

  • Designed for: Charging lithium ion/polymer battery packs with 4 cells
  • Charging Current: Constant programmable
  • Maximum Charge Current: 950mA
  • Programmable Features: Current, timer, and voltage
  • Maximum Voltage Supply: 6V
  • Package: Surface mount 14-WFDFN exposed pad
  • Operating Temperature Range: -40°C to 85°C
  • Suitable for: Battery charger applications
  • Manufacturer: National Semiconductor (TI)
  • Product Status: Active
