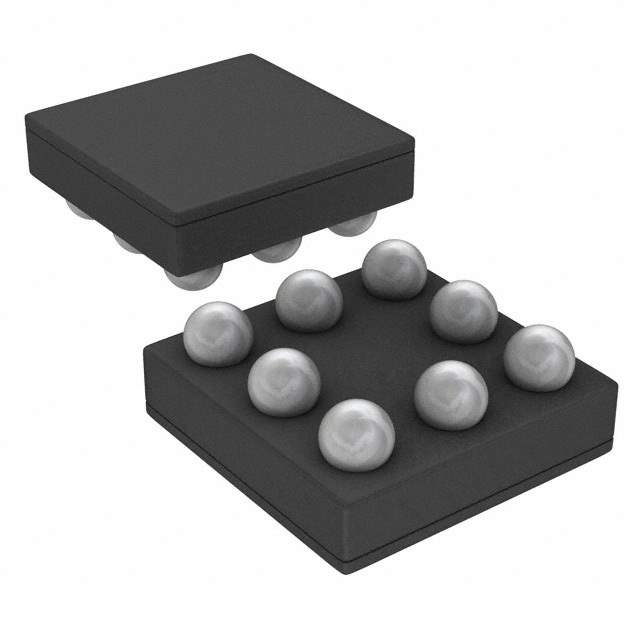

The LMV232TLX is a low-voltage, rail-to-rail output operational amplifier manufactured by National Semiconductor (now Texas Instruments). It is designed for a wide range of applications where low voltage operation, low power consumption, and rail-to-rail output swing are essential. This op-amp is suitable for portable devices, battery-powered systems, and sensor signal conditioning.

Applications:

• Portable electronics
• Battery-powered systems
• Sensor signal conditioning
• Audio amplification
• Active filters

Features:

• Low voltage operation
• Rail-to-rail output swing
• Low power consumption
• High gain
• Low input bias current
• Available in small packages (e.g., SOT-23)

Benefits:

• Extended battery life due to low power consumption.
• Maximum dynamic range with rail-to-rail output swing.
• Simplified circuit design with single-supply operation.
• Accurate signal amplification with high gain and low input bias current.
• Reduced board space requirements with small package options.

Additional Details:

The LMV232TLX typically operates from a single supply voltage of 2.7V to 5.5V. It has a typical gain-bandwidth product of several MHz. Its rail-to-rail output swing allows the output voltage to swing close to the positive and negative supply rails, maximizing dynamic range. Refer to the Texas Instruments datasheet for detailed electrical characteristics, including input offset voltage, input bias current, and open-loop gain.

This op-amp is often used in portable devices and battery-powered systems to amplify sensor signals or implement active filters. Its low voltage operation and low power consumption make it an ideal choice for these applications.
