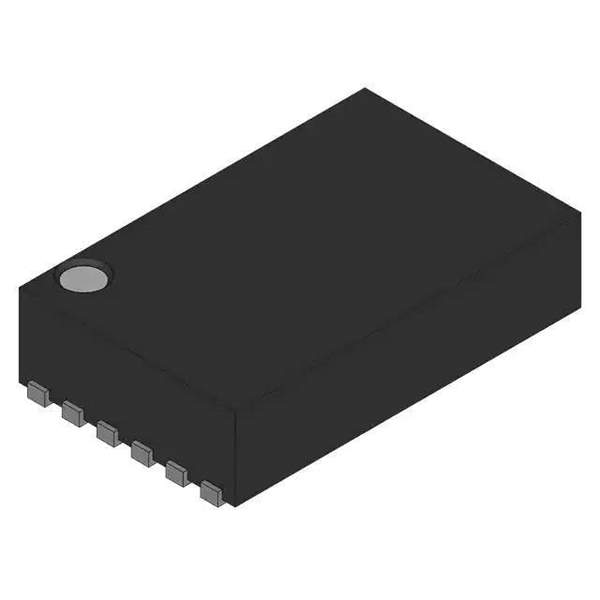

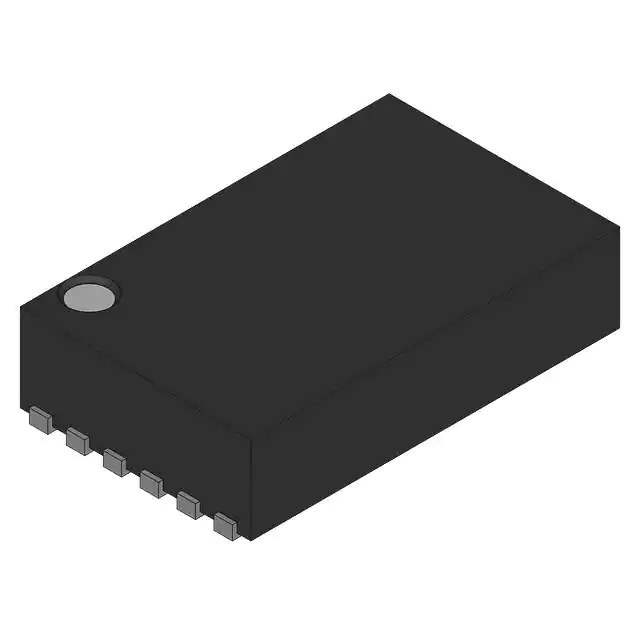

LM3553SD

Name: LM3553SD
Brand: National Semiconductor (TI)
SKU: 827786
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	LM3553SD
Manufacturer	National Semiconductor (TI)
Catalog	PMIC - LED Drivers
Description	DISPLAY DRIVER, PDSO12
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Integrated Circuits (ICs) - Power Management (PMIC) - LED Drivers
Mfr	National Semiconductor (TI)
Series	LM3553
Package	Bulk
Product Status	Active
Type	DC DC Regulator
Topology	Step-Up (Boost)
Internal Switch(s)	Yes
Number of Outputs	1
Voltage - Supply (Min)	2.7V
Voltage - Supply (Max)	5.5V
Current - Output / Channel	1.2A (Flash)
Frequency	1.2MHz
Dimming	I2C
Applications	Backlight, Camera Flash
Temperature Range - Operating	-30°C ~ 85°C (TA)
Mounting Type	Surface Mount
Package / Case	12-WFDFN Exposed Pad
Supplier Device Package	12-WSON (3x3)
Base Product Number	LM3553
Standard Package	190 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8542.39.0001
Win Source Part Number	827786-LM3553SD
Ultra Librarian 3D Model	Ultra Librarian LM3553SD CAD Model

Alternative Products

Description

The LM3553SD is a DC DC regulator integrated circuit (IC) in the 12-WFDFN exposed pad package. This IC provides the following specifications:

Series: LM3553
Applications: Backlight and Camera Flash
Frequency: 1.2MHz
Current Output: 1.2A (Flash)
Switch: Internal
Topology: Step-Up (Boost)
Output: Single
Dimming: I2C
Input Voltage Range: 2.7V to 5.5V
Mounting Type: Surface Mount
Operating Temperature: -30°C to 85°C (TA)
Manufacturer: National Semiconductor (TI)
Product Status: Active
