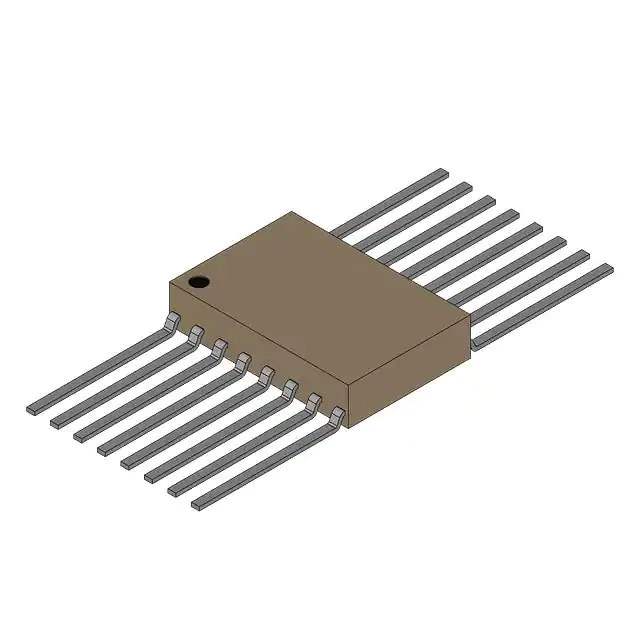

CD4052BMW/883 Real Image
Same model may have multiple batches, images only for reference.

CD4052BMW/883

Part No CD4052BMW/883
Manufacturer National Semiconductor (TI)
Catalog Interface - Analog Switches, Multiplexers, Demultiplexers
Description IC SW SP4T-NCX2 240OHM 14CDIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Integrated Circuits (ICs) - Interface - Analog Switches, Multiplexers, Demultiplexers
Mfr National Semiconductor (TI)
Package Bulk
Product Status Active
Switch Circuit SP4T - NC
Number of Circuits 2
On-State Resistance (Max) 240Ohm
Channel-to-Channel Matching (ΔRon) 5Ohm (Typ)
Voltage - Supply, Single (V+) 3V ~ 20V
Switch Time (Ton, Toff) (Max) 160ns, 240ns
Channel Capacitance (CS(off), CD(off)) 7.5pF
Current - Leakage (IS(off)) (Max) 100nA (Max)
Crosstalk -40dB @ 3MHz
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case 14-CDIP (0.300", 7.62mm)
Supplier Device Package 14-CDIP
Base Product Number CD4052
Standard Package 1 pcs
MSL Level 3 (168 Hours)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 915073-CD4052BMW/883
Ultra Librarian 3D Model Ultra Librarian CD4052BMW/883 CAD Model

Description

The CD4052BMW/883 is an integrated circuit that belongs to the category of Analog Switches, Multiplexers, and Demultiplexers.

  • Switch Configuration: Dual SP4T (Single Pole 4 Throw)
  • Contacts: Normally Closed
  • On-State Resistance: 240 Ohms (Maximum)
  • Voltage Supply Range: 3V to 20V
  • Turn-On Time: 160ns
  • Turn-Off Time: 240ns
  • Channel-to-Channel Matching: 5 Ohms
  • Temperature Range: -55°C to 125°C
  • Package: 14-CDIP
