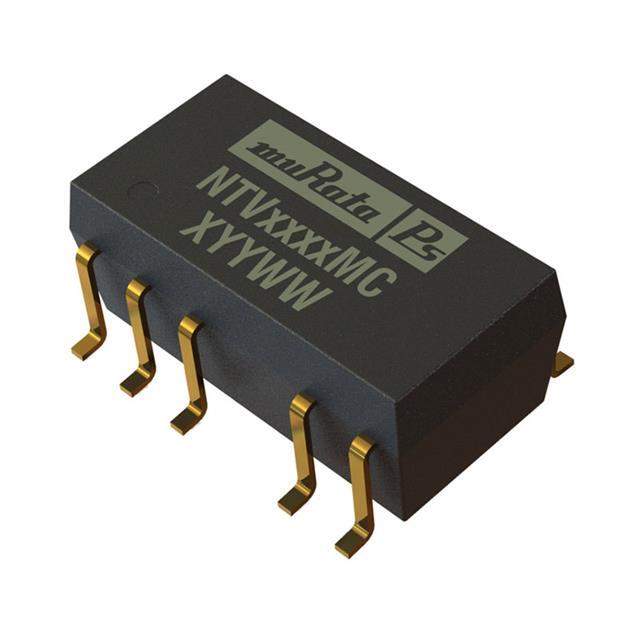

NTV0505MC Real Image NTV0505MC Real Image1 NTV0505MC Real Image2
Same model may have multiple batches, images only for reference.
NTV0505MC Real Image NTV0505MC Real Image1 NTV0505MC Real Image2
NTV0505MC Real Image NTV0505MC Real Image1 NTV0505MC Real Image2
Same model may have multiple batches, images only for reference.

NTV0505MC

Part No NTV0505MC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT DL 3KV
Datasheet
NTV0505MC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NTV
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 3kV (3000V)
Applications ITE (Commercial)
Features SCP
Mounting Style SMD/SMT
Package 22-SMD Module (10 Leads)
Size / Dimension 0.60" L x 0.30" W x 0.26" H (15.2mm x 7.6mm x 6.6mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 71%
Power (Watts) - Max 1W
Win Source Part Number 025836-NTV0505MC
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NTV0505MC CAD Model

Description

Murata Power Solutions Inc. NTV0505MC is an isolated module DC DC converter that has two outputs with a current output of 100mA each.

  • Voltage Isolation: 3kV
  • Operating Temperature Range: -40°C to 85°C
  • Supply and Demand Status: balance

The Murata Power Solutions Inc. NTV0505MC is a reliable choice for your power supply needs.
