Same model may have multiple batches, images only for reference.

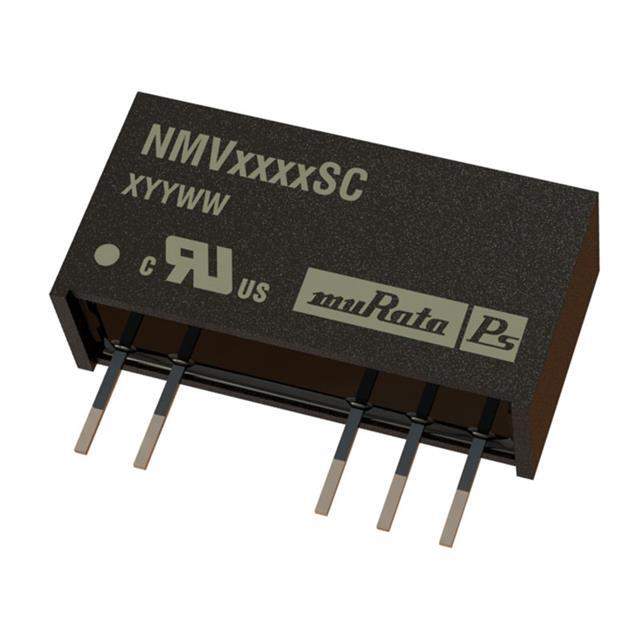

NMV0509SC Real Image
Same model may have multiple batches, images only for reference.

NMV0509SC

Part No NMV0509SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-9V 1W / Isolated Module DC DC Converter 2 Output 9V -9V 55mA, 55mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMV (1W)
Package Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 9V
Voltage - Output 2 -9V
Current - Output (Max) 55mA, 55mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 76%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Base Product Number NMV05
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Names 811-1590-5
Standard Package 25
Win Source Part Number 1082536-NMV0509SC
Ultra Librarian 3D Model Ultra Librarian NMV0509SC CAD Model

Description

The NMV0509SC is an isolated module DC-DC converter from Murata Power Solutions Inc.'s NMV series.

  • Package: Tube
  • Standard Package: 25
  • Power Rating: 1W
  • Outputs: Two outputs
  • Maximum Current Output: 55mA each
  • Voltage Input Range: 4.5V to 5.5V
  • Voltage Isolation: 3kV
  • Voltage Output 1: 9V
  • Voltage Output 2: -9V
  • Efficiency: 76%
  • Operating Temperature Range: -40°C to 85°C
  • Dimensions: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • REACH: Unaffected
  • ECCN: EAR99
