Same model may have multiple batches, images only for reference.

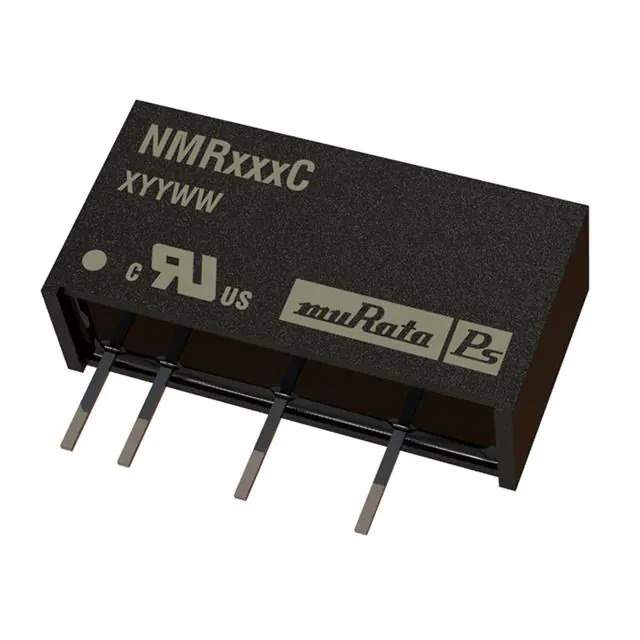

NMR118C Real Image
Same model may have multiple batches, images only for reference.

NMR118C

Part No NMR118C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 1W / Isolated Module DC DC Converter 1 Output 5V 200mA 21.6V - 26.4V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMR (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 70%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Base Product Number NMR11
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649193-NMR118C
Ultra Librarian 3D Model Ultra Librarian NMR118C CAD Model

Description

The NMR118C is a 1W isolated module DC-DC converter from Murata Power Solutions Inc. It belongs to the NMR series, which is designed for power supplies in board mount applications.

  • Power: 1W
  • Voltage Isolation: 1kV
  • Application: Commercial ITE
  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Input Voltage: 21.6V to 26.4V
  • Efficiency: 70%
  • Mounting: Through Hole
  • Package: 7-SIP
  • Product Status: Active
