Same model may have multiple batches, images only for reference.

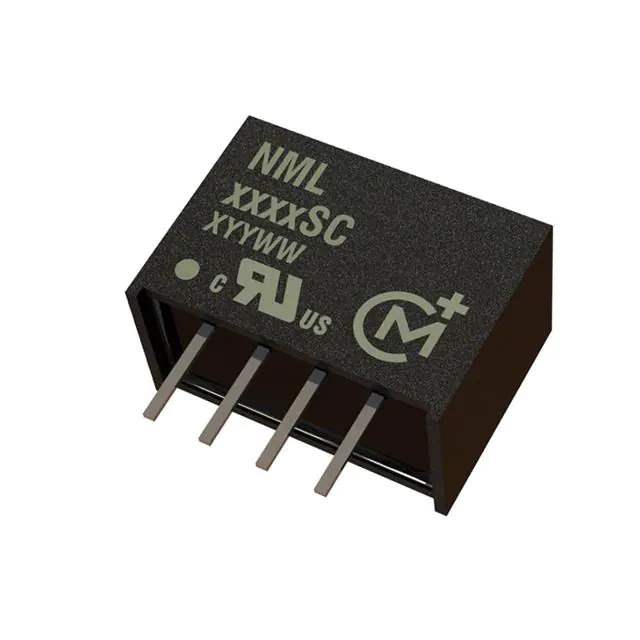

NML0505SC Real Image
Same model may have multiple batches, images only for reference.

NML0505SC

Part No NML0505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W / Isolated Module DC DC Converter 1 Output 5V 400mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NML (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 78%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm)
Base Product Number NML05
Standard Package 35 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649186-NML0505SC
Ultra Librarian 3D Model Ultra Librarian NML0505SC CAD Model

Description

The 649186-NML0505SC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NML
  • Designed for: Power supplies in commercial information technology equipment (ITE)
  • Package: Tube
  • Size: 0.55" L x 0.30" W x 0.39" H (14.0mm x 7.6mm x 9.9mm)
  • Output: Single
  • Maximum Output Current: 400mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 5V
  • Voltage Isolation: 1 kV
  • Efficiency: 78%
  • Mounting: Through-hole
  • Package Type: 4-SIP module
  • Operating Temperature Range: -40°C to 85°C
