Same model may have multiple batches, images only for reference.

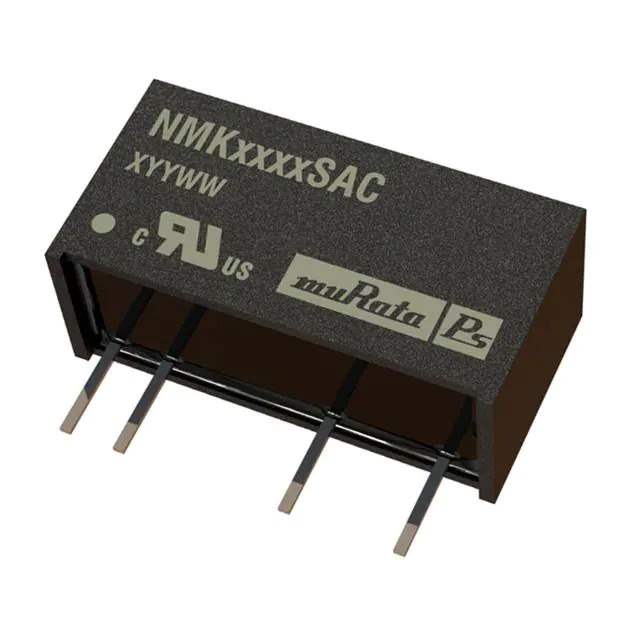

NMK2405SAC Real Image
Same model may have multiple batches, images only for reference.

NMK2405SAC

Part No NMK2405SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMK (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 5V
Current - Output (Max) 400mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK24
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649183-NMK2405SAC
Ultra Librarian 3D Model Ultra Librarian NMK2405SAC CAD Model

Description

The NMK2405SAC is a 2W isolated module DC-DC converter designed for power supply applications in commercial IT equipment.

  • Size: 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
  • Mounting: Through Hole
  • Voltage Isolation: 3 kV
  • Output: Single
  • Maximum Output Current: 400mA
  • Input Voltage: 21.6V to 26.4V
  • Output Voltage: 5V
  • Efficiency: 84%
  • Operating Temperature: -40°C to 85°C
  • Status: Active
  • Manufacturer: Murata Power Solutions Inc.
