Same model may have multiple batches, images only for reference.

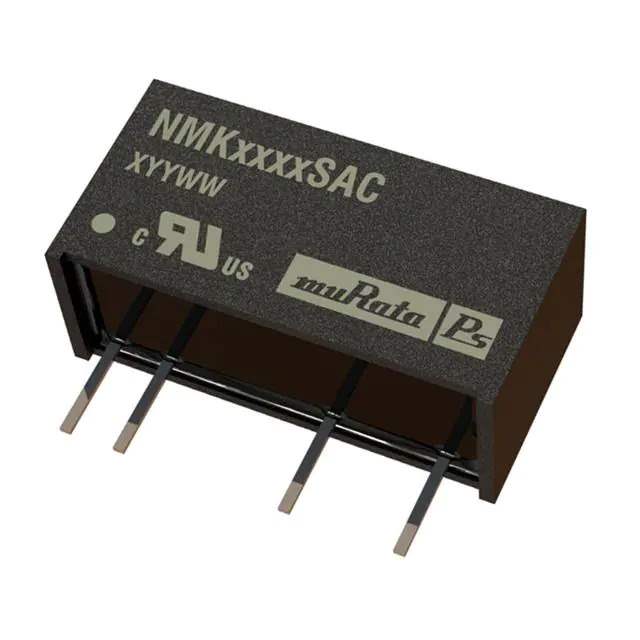

NMK1209SAC Real Image
Same model may have multiple batches, images only for reference.

NMK1209SAC

Part No NMK1209SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 9V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMK (2W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 9V
Current - Output (Max) 222mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK12
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649180-NMK1209SAC
Ultra Librarian 3D Model Ultra Librarian NMK1209SAC CAD Model

Description

The NMK1209SAC is a 2W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NMK
  • Packaging: Tube
  • Size: 0.77" L x 0.30" W x 0.40" H
  • Outputs: Single
  • Maximum Output Current: 222mA
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltage: 9V
  • Efficiency: 87%
  • Application: ITE (Commercial)
  • Standard Package: 25 pieces
