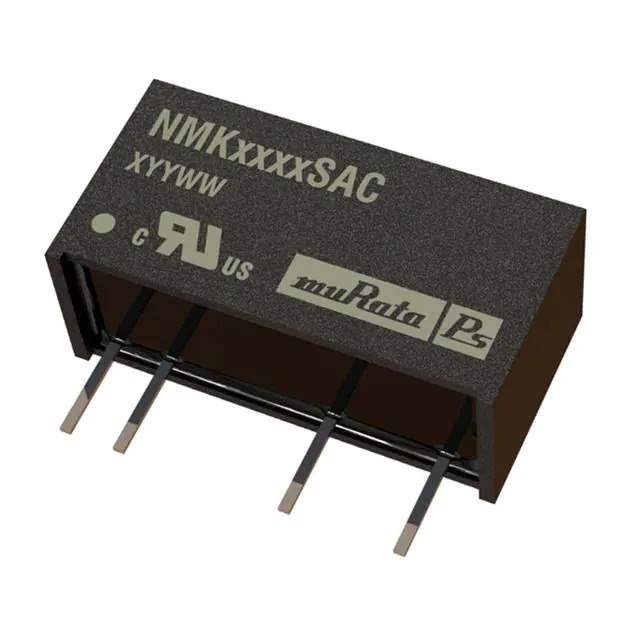

NMK0512SAC Real Image
Same model may have multiple batches, images only for reference.

NMK0512SAC

Part No NMK0512SAC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V 2W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMK (2W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 12V
Current - Output (Max) 167mA
Power (Watts) 2 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 87%
Mounting Type Through Hole
Package / Case 7-SIP Module, 4 Leads
Size / Dimension 0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number NMK05
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649175-NMK0512SAC
Ultra Librarian 3D Model Ultra Librarian NMK0512SAC CAD Model

Description

The NMK0512SAC is a power supply module designed for board mount applications.

  • Series: NMK
  • Module: 2W isolated module
  • Voltage Isolation: 3 kV
  • Output: Single
  • Maximum Current: 167mA
  • Input Voltage Range: 4.5V to 5.5V
  • Output Voltage: 12V
  • Efficiency: 87%
  • Applications: ITE (Commercial)
  • Mounting: Through hole
  • Package: 7-SIP module with 4 leads
  • Operating Temperature Range: -40°C to 85°C
  • Manufacturer: Murata Power Solutions Inc.
  • Product Status: active
