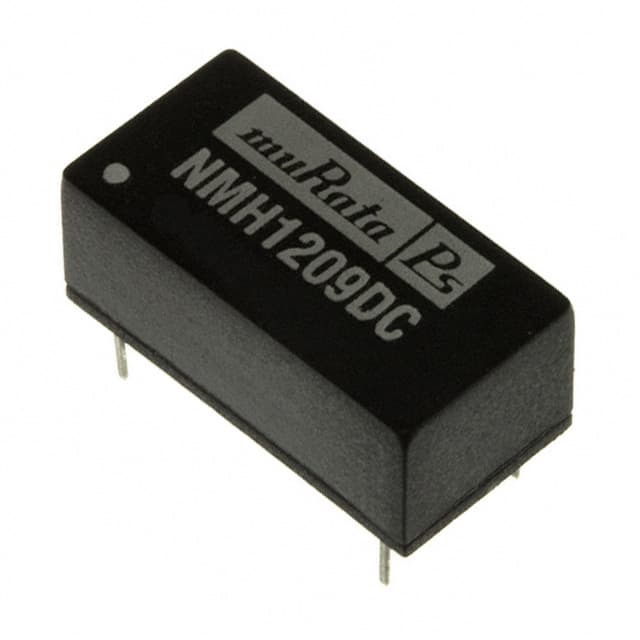

Same model may have multiple batches, images only for reference.

NMH1209DC

Name: NMH1209DC
Brand: Murata Power Solutions Inc.
SKU: 1230148
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	NMH1209DC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-9V 2W / Isolated Module DC DC Converter 2 Output 9V -9V 111mA, 111mA 10.8V - 13.2V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Murata Power Solutions Inc.
Series	NMH (2W)
Package	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	10.8V
Voltage - Input (Max)	13.2V
Voltage - Output 1	9V
Voltage - Output 2	-9V
Current - Output (Max)	111mA, 111mA
Power (Watts)	2 W
Voltage - Isolation	1 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	83%
Mounting Type	Through Hole
Package / Case	14-DIP Module, 6 Leads
Dimension	0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
Base Product Number	NMH12
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	811-1515-5
Standard Package	25
Win Source Part Number	1230148-NMH1209DC
Ultra Librarian 3D Model	Ultra Librarian NMH1209DC CAD Model

Alternative Products

Description

The NMH1209DC is a 2W, isolated module DC-DC converter that is designed for use in various electronics applications such as power supplies, DC-DC converters, and more.

Power: 2W
Type: Isolated Module DC-DC Converter
Package: Tube
Standard Package: 25
Voltage Isolation: 1 kV
Outputs: 2
Voltage Input Range: 10.8V to 13.2V
Efficiency: 83%
Temperature Range: -40°C ~ 85°C
Dimension: 0.77" L x 0.39" W x 0.30" H (19.6mm x 9.9mm x 7.6mm)
