Same model may have multiple batches, images only for reference.

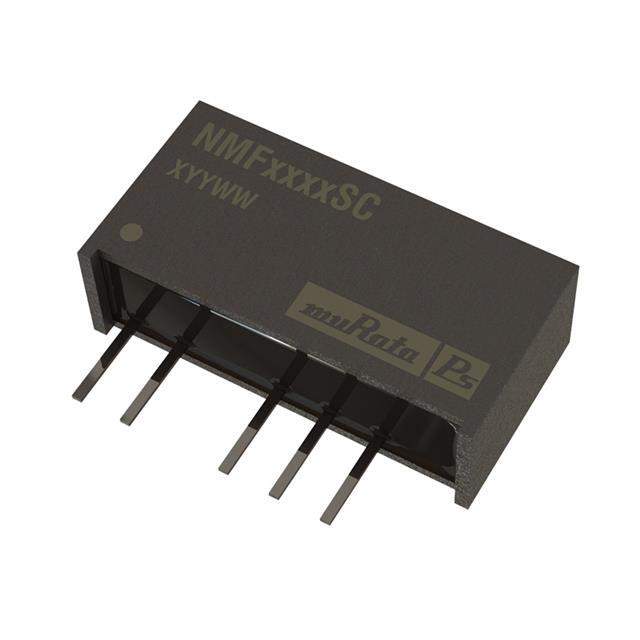

NMF1212SC Real Image
Same model may have multiple batches, images only for reference.

NMF1212SC

Part No NMF1212SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 12VIN 12V SIP SGL / Module DC-DC 12VIN 1-OUT 12V 0.083A 1W 5-Pin SIP
Datasheet
NMF1212SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMF
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 11.4V
Voltage Input MAX 12.6V
Voltage - Output 1 12V
Current - Output (Maximum) 83mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 62%
Mounting Style Through Hole
Package 7-SIP Module, 5 Leads
Dimension 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
Win Source Part Number 790747-NMF1212SC
Popularity Medium
Supply and Demand Status Limited
Family Name NMF1212SC
Introduction Date February 29, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMF1212SC CAD Model

Description

The Murata Power Solutions Inc. NMF1212SC is an isolated module type power supply.

  • Power: 1W
  • Efficiency: 62%
  • Voltage Isolation: 1kV (1000V)
  • Voltage Output: 12V
  • Package: 7-SIP module, 5 leads
  • Dimension: 0.77" L x 0.24" W x 0.39" H (19.5mm x 6.0mm x 10.0mm)
  • Applications: ITE (Commercial)
  • Input Voltage Range: 11.4V to 12.6V
  • Maximum Output Current: 83mA
  • Supply and Demand Status: Limited
  • Alternative Parts: DU1P0-12S12, RSS12-1212/HP-R, RSS12-1212/H, RY-1212SCP
  • Introduction Date: February 29, 2008
  • Estimated EOL Date: 2027
  • Country of Origin: China
