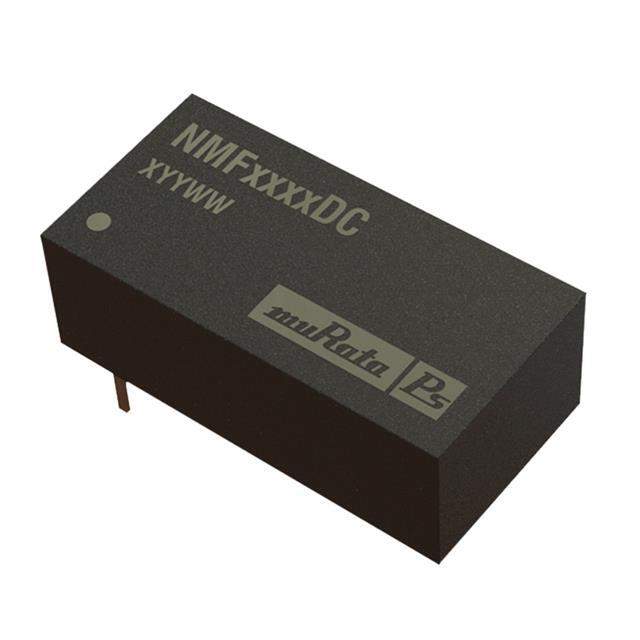

NMF0505DC Real Image
Same model may have multiple batches, images only for reference.

NMF0505DC

Part No NMF0505DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT DIP SGL / Module DC-DC 5VIN 1-OUT 5V 0.1A 0.5W 5-Pin PDIP
Datasheet
NMF0505DC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series NMF
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 4.75V
Voltage Input MAX 5.25V
Voltage - Output 1 5V
Current - Output (Maximum) 100mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range 0°C ~ 70°C
Efficiency 50%
Mounting Style Through Hole
Package 14-DIP Module, 5 Leads
Dimension 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Win Source Part Number 790743-NMF0505DC
Popularity Medium
Supply and Demand Status Limited
Family Name NMF0505DC
Introduction Date February 29, 2008
Country of Origin China
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian NMF0505DC CAD Model

Description

The Murata Power Solutions Inc. NMF0505DC is an isolated module.

  • Power Rating: 1W
  • Voltage Isolation: 1kV (1000V)
  • Outputs: 1
  • Output Voltage: 5V
  • Efficiency: 50%
  • Temperature Range: 0°C to 70°C
  • Mounting: Through-Hole
  • Package Size: 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
