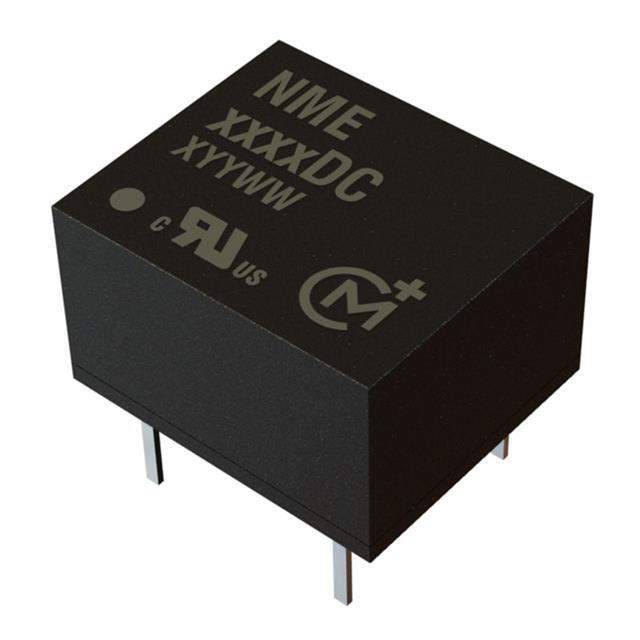

NME0505DC

Part No NME0505DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5VOUT DIP SGL
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 35
Category Power Supplies - Board Mount
Family DC DC Converters
Series NME
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 1.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Current - Output (Max) 200mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 8-DIP Module (4 Leads)
Size / Dimension 0.39" L x 0.45" W x 0.27" H (9.9mm x 11.4mm x 6.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 69%
Power (Watts) - Max 1W
Catalog NME Series
Win Source Part Number 083313-NME0505DC
Is this a common-used part? Yes
Popularity High
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NME0505DC CAD Model

Description

The Murata Power Solutions Inc. NME series DC-DC converter is a high-performance power supply designed for ITE (Commercial) applications.

  • Voltage-Isolation: 1kV (1000V)
  • Output Voltage: 5V
  • Maximum Output Current: 200mA
  • Power Output: 1W
  • Efficiency: 69%
  • Operating Temperature: -40°C to 85°C
  • Mounting Style: Through-hole
  • Package: 8-DIP module
  • Leads: 4
  • Size: 0.39" L x 0.45" W x 0.27" H (9.9mm x 11.4mm x 6.9mm)
