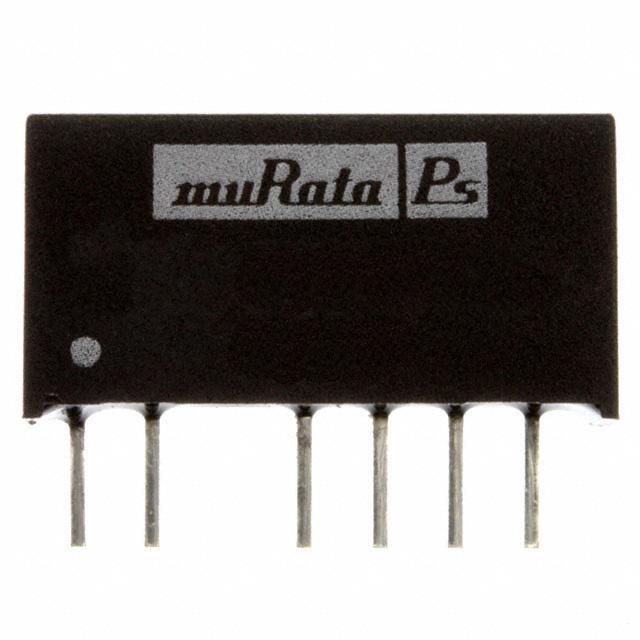

Same model may have multiple batches, images only for reference.
NMD050505SC Murata Power Solutions Inc.
Same model may have multiple batches, images only for reference.

NMD050505SC

Part No NMD050505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 5-5VOUT SIP
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Murata Power Solutions Inc.
Standard Package 25
Category Power Supplies - Board Mount
Family DC DC Converters
Series NMD
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 5V
Voltage - Output 2 5V
Current - Output (Max) 100mA 100mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 7-SIP Module (6 Leads)
Size / Dimension 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm)
Operating Temperature Range 0°C ~ 70°C
Efficiency 70%
Power (Watts) - Max 1W
Catalog NMD Series
Win Source Part Number 045294-NMD050505SC
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian NMD050505SC CAD Model

Description

The NMD series isolated module DC-DC converter from Murata Power Solutions is designed for ITE (Commercial) applications.

  • Voltage Isolation: 1kV (1000V).
  • Outputs: Two.
  • Maximum Output Current: 100mA each.
  • Input Voltage Range: 4.5V to 5.5V.
  • Output Voltage: 5V for both outputs.
  • Power Rating: 1W.
  • Efficiency: 70%.
  • Package: 7-SIP module (6 leads).
  • Dimensions: 0.77" L x 0.24" W x 0.39" H (19.6mm x 6.1mm x 9.9mm).
  • Mounting: Through hole.
  • Standard Package: 25 units.
