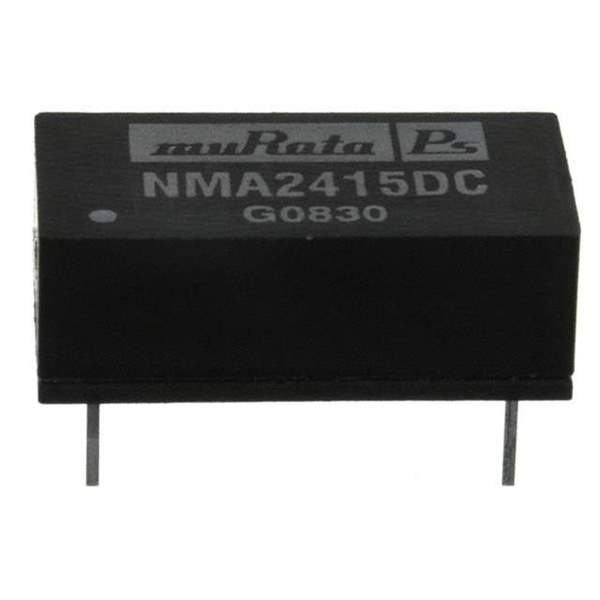

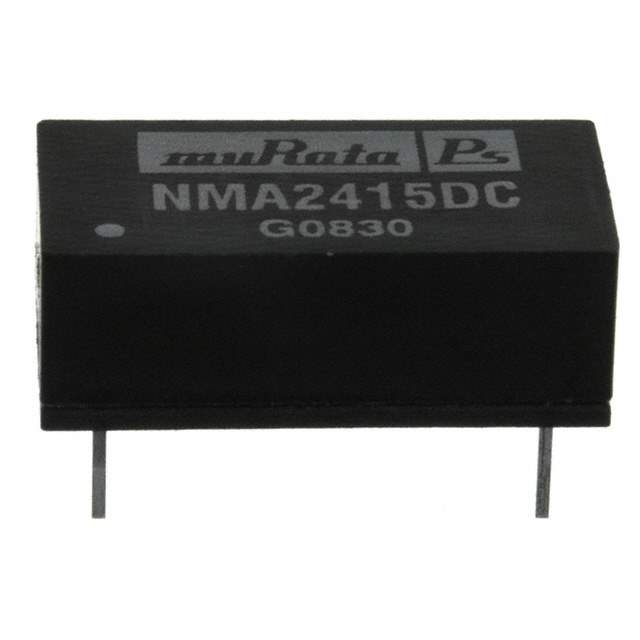

NMA2415DC Real Image
Same model may have multiple batches, images only for reference.

NMA2415DC

Part No NMA2415DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 24VIN 15V DIP DL
Datasheet
NMA2415DC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NMA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 21.6V
Voltage - Input (Max) 26.4V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 14-DIP Module (6 Leads)
Size / Dimension 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 80%
Power (Watts) - Max 1W
Win Source Part Number 209284-NMA2415DC
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management, Industrial
Ultra Librarian 3D Model Ultra Librarian NMA2415DC CAD Model

Description

The NMA2415DC is a medium popularity electronic component that has limited supply and demand from Murata Power Solutions.

  • Type: Isolated DC-DC converter module
  • Outputs: 15V and -15V
  • Maximum Output Current: 33mA for each output
  • Power Rating: 1W
  • Efficiency: 80%
  • Applications: Power management and industrial applications
  • Package: 14-DIP module (6 leads)
  • Mounting: Through hole
  • Operating Temperature Range: -40°C to 85°C
