Same model may have multiple batches, images only for reference.

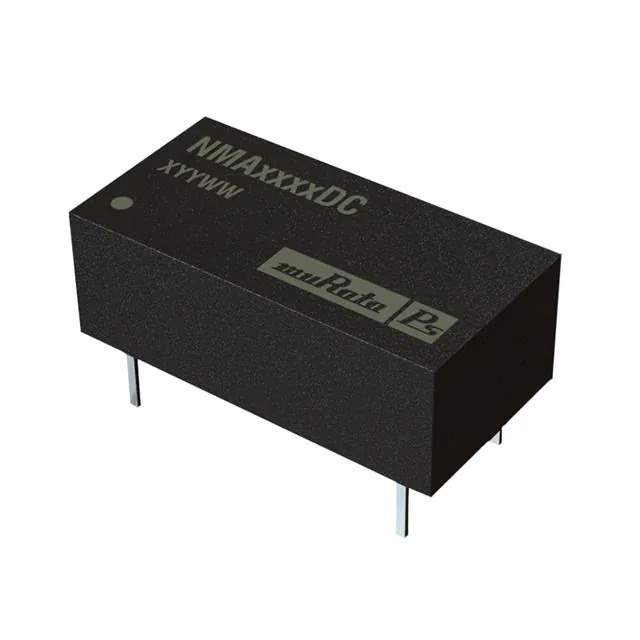

NMA1212DC Real Image
Same model may have multiple batches, images only for reference.

NMA1212DC

Part No NMA1212DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-12V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NMA (1W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 12V
Voltage - Output 2 -12V
Current - Output (Max) 42mA, 42mA
Power (Watts) 1 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 14-DIP Module, 6 Leads
Size / Dimension 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Base Product Number NMA12
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 649113-NMA1212DC
Ultra Librarian 3D Model Ultra Librarian NMA1212DC CAD Model

Description

The NMA1212DC is a 1W isolated module DC-DC converter manufactured by Murata Power Solutions Inc.

  • Series: NMA
  • Application: Board mount power supply
  • Voltage Isolation: 1 kV
  • Outputs: Two
  • Maximum Output Current: 42mA each
  • Input Voltage Range: 10.8V to 13.2V
  • Output Voltages: 12V and -12V
  • Efficiency: 75%
  • Package: 14-DIP module with 6 leads
  • Suitable for: ITE (Commercial) applications
  • Operating Temperature: -40°C to 85°C
  • Product Status: Active
