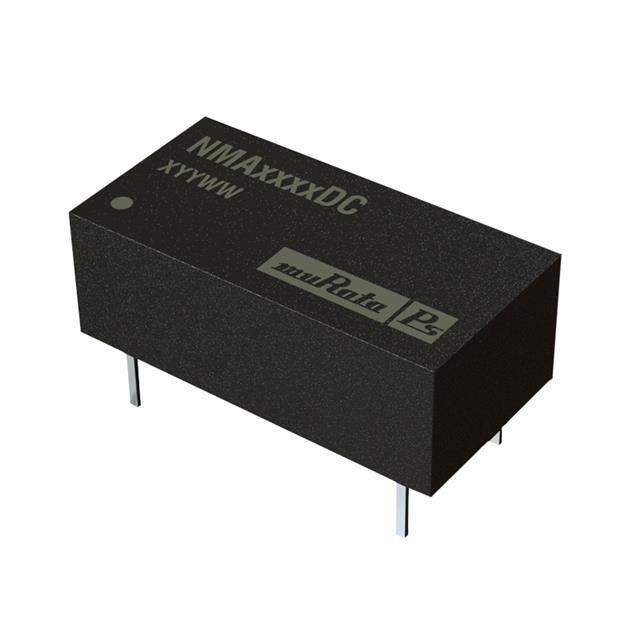

NMA0515DC Real Image
Same model may have multiple batches, images only for reference.

NMA0515DC

Part No NMA0515DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description CONV DC/DC 1W 5VIN 15VOUT DIP DL
Datasheet
NMA0515DC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount
Family DC DC Converters
Manufacturer Murata Power Solutions Inc.
Series NMA
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) - Manufacture Series 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Mounting Style Through Hole
Package 14-DIP Module (6 Leads)
Size / Dimension 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Operating Temperature Range -40°C ~ 85°C
Efficiency 78%
Power (Watts) - Max 1W
Win Source Part Number 209283-NMA0515DC
Popularity Medium
Supply and Demand Status Limited
Application Field Used in Power Management
Quantity per package 25
Ultra Librarian 3D Model Ultra Librarian NMA0515DC CAD Model

Description

The NMA0515DC is an isolated module DC-DC converter designed for use in board mount power supplies from Murata Power Solutions Inc.

  • Voltage Isolation: 1kV (1000V)
  • Maximum Output Power: 1W
  • Outputs: Two outputs
  • Current Output: 33mA each
  • Input Voltage Range: 4.5V to 5.5V
  • Efficiency: 78%
  • Case/Package: 14-DIP module (6 leads)

The supply and demand status of the product is limited, and it is mainly used in power management applications.
