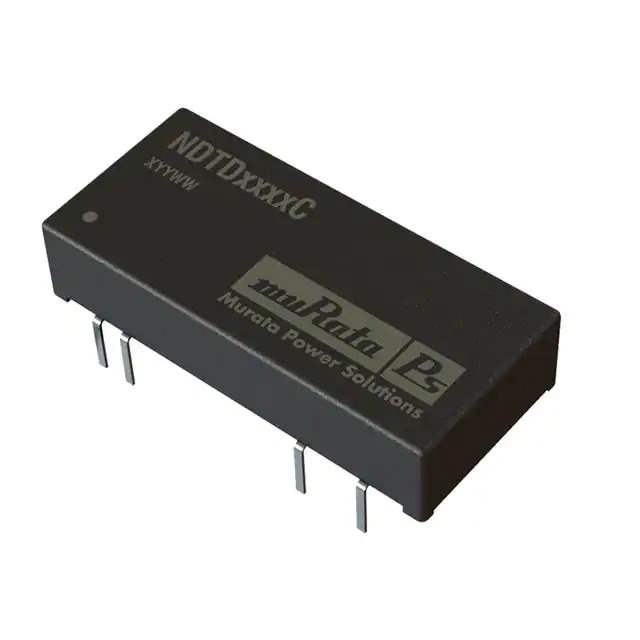

NDTD0515C Real Image
Same model may have multiple batches, images only for reference.

NDTD0515C

Part No NDTD0515C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 3W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series NDTD (3W)
Package Tube
Product Status Last Time Buy
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 9V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 100mA, 100mA
Power (Watts) 3 W
Voltage - Isolation 1 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Type Through Hole
Package / Case 24-DIP Module (600 mil, 8 Leads)
Size / Dimension 1.27" L x 0.58" W x 0.27" H (32.3mm x 14.7mm x 6.9mm)
Base Product Number NDTD05
Standard Package 15 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 648213-NDTD0515C
Ultra Librarian 3D Model Ultra Librarian NDTD0515C CAD Model

Description

The NDTD0515C is a 3W isolated module DC-DC converter from Murata Power Solutions Inc.

  • Series: NDTD
  • Application: Power supplies in board mount applications
  • Package: Tube
  • Dimensions: 1.27" L x 0.58" W x 0.27" H
  • Voltage Isolation: 1 kV
  • Outputs: Two
  • Maximum Output Current: 100mA each
  • Input Voltage Range: 4.5V to 9V
  • Output Voltages: 15V and -15V
  • Efficiency: 75%
  • Operating Temperature: -40°C to 85°C
  • Application Suitability: ITE (Commercial)
