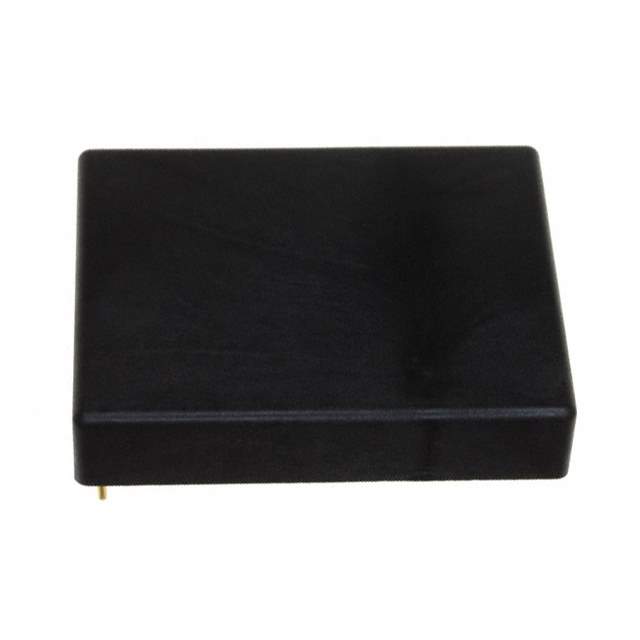

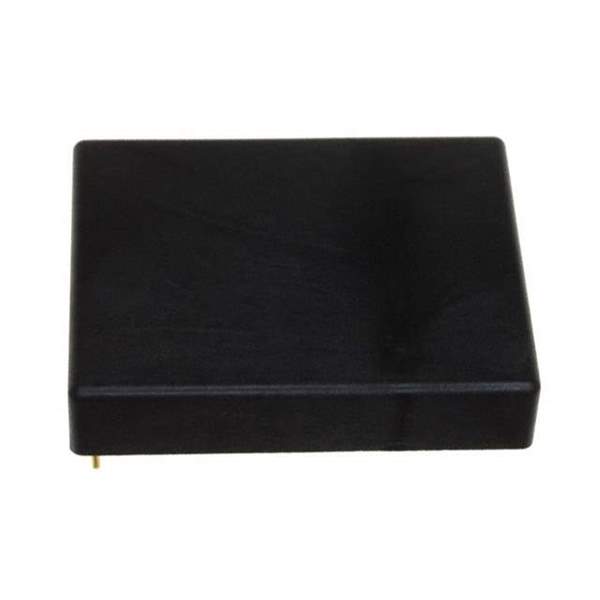

UHE-15/2000-Q12N-C Real Image
Same model may have multiple batches, images only for reference.

UHE-15/2000-Q12N-C

Part No UHE-15/2000-Q12N-C
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 15V 30W / Isolated Module DC DC Converter 1 Output 15V 2A 9V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 36V
Voltage - Output 1 15V
Current - Output (Max) 2A
Power (Watts) 30 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OTP, SCP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 89.5%
Mounting Through Hole
Case / Package 9-DIP Module, 6 Leads
Size / Dimension 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
Control Features Enable, Active Low
Base Product Number UHE-15
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 99
Win Source Part Number 1336443-UHE-15/2000-Q12N-C
Ultra Librarian 3D Model Ultra Librarian UHE-15/2000-Q12N-C CAD Model

Description

The Murata Power Solutions Inc. DC-DC converter is an isolated module type with a power of 30W and an efficiency of 89.5%.

  • Features: Remote On/Off, OCP, OTP, SCP, and UVLO
  • Voltage Isolation: 1.5 kV
  • Number of Outputs: 1
  • Input Voltage: 9V to 36V
  • Output Voltage: 15V
  • Current Output: 2A
  • Mounting: Through a hole
  • Size: 2.00" L x 1.60" W x 0.40" H (50.8mm x 40.6mm x 10.2mm)
  • REACH: Unaffected
  • ECCN: EAR99
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8504.40.9580
