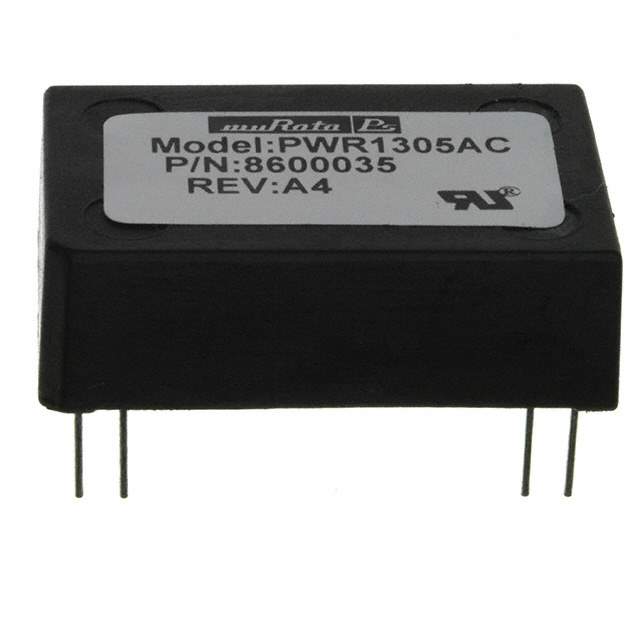

PWR1305AC Real Image
Same model may have multiple batches, images only for reference.

PWR1305AC

Part No PWR1305AC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 2W / Isolated Module DC DC Converter 2 Output 15V -15V 50mA, 50mA 4.5V - 5.5V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 4.5V
Voltage - Input (Max) 5.5V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 50mA, 50mA
Power (Watts) 2 W
Voltage - Isolation 4 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 75%
Mounting Through Hole
Case / Package 24-DIP Module, 9 Leads
Size / Dimension 1.27" L x 0.81" W x 0.40" H (32.3mm x 20.5mm x 10.2mm)
Base Product Number PWR13
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1814-5
Standard Package 51
Win Source Part Number 1335311-PWR1305AC
Ultra Librarian 3D Model Ultra Librarian PWR1305AC CAD Model

Description

The Murata Power Solutions Inc. PWR1305AC is an isolated module DC-DC converter.

  • Package: 24-DIP module with 9 leads
  • Applications: ITE (Commercial)
  • Power Output: 2 W
  • Voltage Isolation: 4 kV
  • Outputs: Two outputs
  • Maximum Current: 50mA for each output
  • Input Voltage Range: from 4.5V to 5.5V
  • Output Voltages: 15V and -15V
  • Efficiency: 75%
  • Operating Temperature: -40°C to 85°C
  • Compliance: RoHS3 compliant
  • Status: Now obsolete
