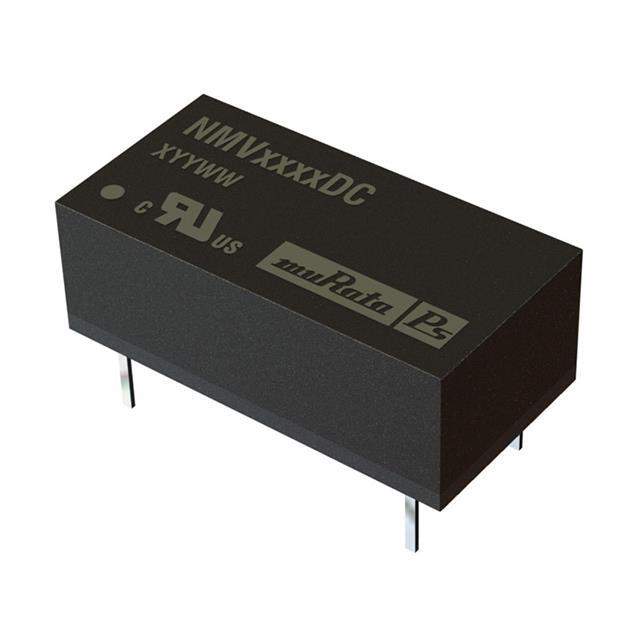

NMV1205DC Real Image
Same model may have multiple batches, images only for reference.

NMV1205DC

Part No NMV1205DC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 71%
Mounting Through Hole
Case / Package 14-DIP Module, 6 Leads
Size / Dimension 0.77" L x 0.39" W x 0.27" H (19.6mm x 9.9mm x 6.9mm)
Base Product Number NMV12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Standard Package 25
Win Source Part Number 1335269-NMV1205DC
Ultra Librarian 3D Model Ultra Librarian NMV1205DC CAD Model

Description

Murata Power Solutions Inc.'s NMV1205DC is an isolated module DC-DC converter designed for ITE (Commercial) applications.

  • Power Output: 1W
  • Package: 14-DIP module
  • Leads: 6
  • Outputs: 5V and -5V
  • Maximum Output Current: 100mA each
  • Efficiency: 71%
  • Operating Temperature: -40°C to 85°C
  • Meets: Industry's highest standards of quality and performance
  • Ideal choice for: Demanding applications
