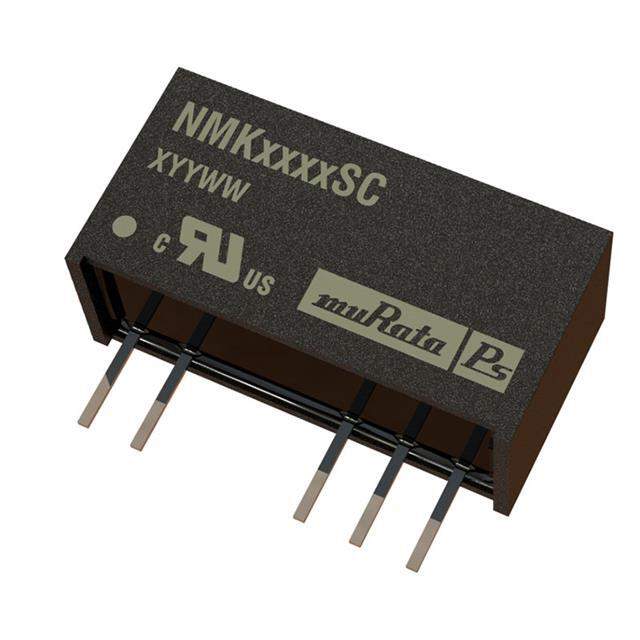

Same model may have multiple batches, images only for reference.

NMK0505SC

Name: NMK0505SC
Brand: Murata Power Solutions Inc.
SKU: 1335263
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	NMK0505SC
Manufacturer	Murata Power Solutions Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER +/-5V 2W / Isolated Module DC DC Converter 2 Output 5V -5V 200mA, 200mA 4.5V - 5.5V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Manufacturer	Murata Power Solutions Inc.
Packaging	Tube
Type	Isolated Module
Number of Outputs	2
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	5.5V
Voltage - Output 1	5V
Voltage - Output 2	-5V
Current - Output (Max)	200mA, 200mA
Power (Watts)	2 W
Voltage - Isolation	3 kV
Applications	ITE (Commercial)
Temperature Range - Operating	-40°C ~ 85°C
Efficiency	83%
Mounting	Through Hole
Case / Package	7-SIP Module, 5 Leads
Size / Dimension	0.77" L x 0.30" W x 0.40" H (19.7mm x 7.7mm x 10.2mm)
Base Product Number	NMK05
RoHS Status	ROHS3 Compliant
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.40.9580
Other Part Number	NMK0505SC-ND,811-3390-5
Standard Package	25
Win Source Part Number	1335263-NMK0505SC
Ultra Librarian 3D Model	Ultra Librarian NMK0505SC CAD Model

Alternative Products

Description

The Murata Power Solutions Inc. NMK0505SC is a high-performance DC-DC converter that features a medium popularity rating.

Type: Isolated module
Designed for: Reliable power conversion in a variety of applications
Manufacturer: Murata Power Solutions Inc.
RoHS Compliant: Yes
Available for Purchase: On the Win Source website
