Same model may have multiple batches, images only for reference.

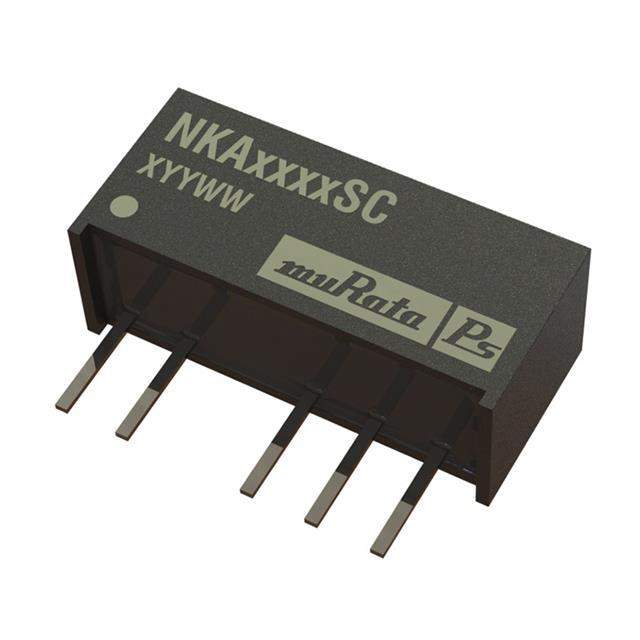

NKA1215SC Real Image
Same model may have multiple batches, images only for reference.

NKA1215SC

Part No NKA1215SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-15V 1W / Isolated Module DC DC Converter 2 Output 15V -15V 33mA, 33mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 15V
Voltage - Output 2 -15V
Current - Output (Max) 33mA, 33mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 82%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1426-5
Standard Package 30
Win Source Part Number 1335258-NKA1215SC
Ultra Librarian 3D Model Ultra Librarian NKA1215SC CAD Model

Description

Murata Power Solutions Inc. NKA1215SC is a DC-DC converter that is isolated and has a 3 kV voltage isolation.

  • Application: ITE (Commercial)
  • Mounting Type: Through a hole
  • Standard Package: 30
  • Power: 1 W
  • Outputs: Two, 15V and -15V
  • Maximum Output Current: 33mA
  • Manufacturer: Murata Power Solutions Inc.
