Same model may have multiple batches, images only for reference.

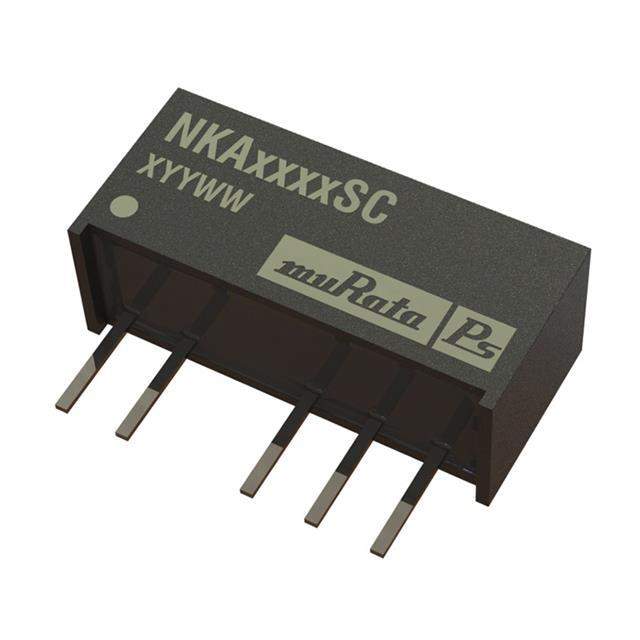

NKA1205SC Real Image
Same model may have multiple batches, images only for reference.

NKA1205SC

Part No NKA1205SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W / Isolated Module DC DC Converter 2 Output 5V -5V 100mA, 100mA 10.8V - 13.2V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount>DC DC Converters
Manufacturer Murata Power Solutions Inc.
Packaging Tube
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 10.8V
Voltage - Input (Max) 13.2V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 74%
Mounting Through Hole
Case / Package 6-SIP Module, 5 Leads
Size / Dimension 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
Base Product Number NKA12
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Other Part Number 811-1423-5
Standard Package 30
Win Source Part Number 1335260-NKA1205SC
Ultra Librarian 3D Model Ultra Librarian NKA1205SC CAD Model

Description

The Murata Power Solutions Inc. isolated module is a high-quality component that is used in power supplies - board mount>DC DC converters.

  • Size: 0.65" L x 0.23" W x 0.30" H (16.5mm x 5.8mm x 7.6mm)
  • Outputs: Two
  • Voltage: 5V and -5V, respectively
  • Maximum Power: 1 W
  • Efficiency: 74%
  • Voltage Isolation: 3 kV
  • Ideal for: Use in ITE (Commercial) applications
  • ROHS3 Compliant: Yes
