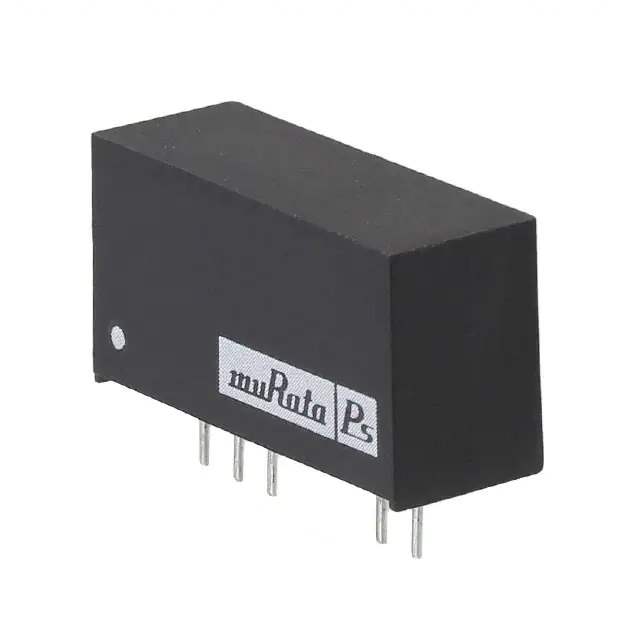

MEV1D1505SC Real Image
Same model may have multiple batches, images only for reference.

MEV1D1505SC

Part No MEV1D1505SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER +/-5V 1W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Murata Power Solutions Inc.
Series MEV1 (1W)
Package Tube
Product Status Obsolete
Type Isolated Module
Number of Outputs 2
Voltage - Input (Min) 13.5V
Voltage - Input (Max) 16.5V
Voltage - Output 1 5V
Voltage - Output 2 -5V
Current - Output (Max) 100mA, 100mA
Power (Watts) 1 W
Voltage - Isolation 3 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C
Efficiency 84.5%
Mounting Type Through Hole
Package / Case 7-SIP Module, 5 Leads
Size / Dimension 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Base Product Number MEV1D15
Standard Package 25 pcs
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.40.9580
Win Source Part Number 847916-MEV1D1505SC
Ultra Librarian 3D Model Ultra Librarian MEV1D1505SC CAD Model

Description

The MEV1D1505SC is a 1W isolated module DC/DC converter from Murata Power Solutions Inc.

  • Series: MEV1.
  • Applications: ITE (Commercial).
  • Package: Tube.
  • Size: 0.77" L x 0.24" W x 0.40" H.
  • Outputs: Two outputs.
  • Output Voltages: 5V and -5V.
  • Input Voltage Range: 13.5V to 16.5V.
  • Maximum Output Current: 100mA for each output.
  • Efficiency: 84.5%.
  • Mounting: Through-hole mountable.
  • Operating Temperature Range: -40°C to 85°C.
