Same model may have multiple batches, images only for reference.

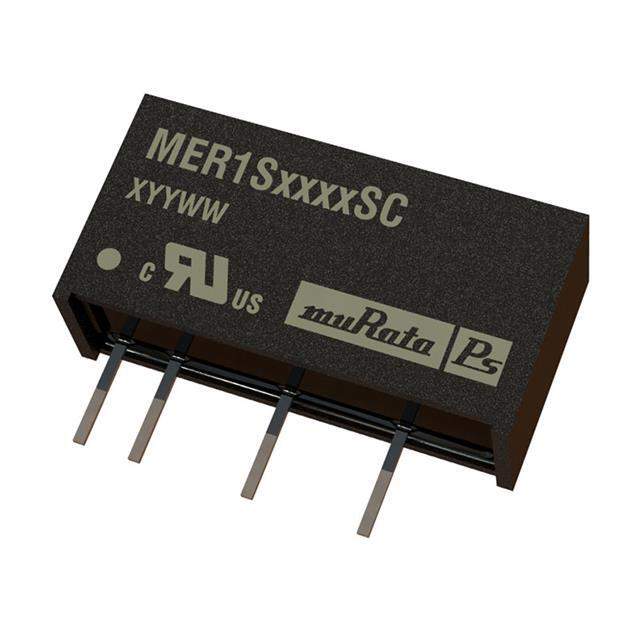

MER1S1212SC Real Image
Same model may have multiple batches, images only for reference.

MER1S1212SC

Part No MER1S1212SC
Manufacturer Murata Power Solutions Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description 1kVDC Isolated 1W Single Output DC/DC Converters
Datasheet
MER1S1212SC Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Power Supplies - Board Mount
Manufacturer Murata Power Solutions Inc.
Series MER1
Packaging Tube
Type Isolated Module
Number of Outputs 1
Input Voltage MIN 10.8V
Voltage Input MAX 13.2V
Voltage - Output 1 12V
Current - Output (Maximum) 84mA
Power (Watts) 1W
Voltage - Isolation 1kV (1000V)
Applications ITE (Commercial)
Operating Temperature Range -40°C ~ 85°C
Efficiency 88.5%
Mounting Style Through Hole
Package 7-SIP Module, 4 Leads
Size 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
Win Source Part Number 1221721-MER1S1212SC
Manufacturer Homepage www.murata-ps.com
Popularity Medium
Supply and Demand Status Limited
Family Name MER1
Introduction Date September 15, 2009
Country of Origin China
Halogen Free Unknown
Estimated EOL Date 2024
Ultra Librarian 3D Model Ultra Librarian MER1S1212SC CAD Model

Description

The Murata Power Solutions Inc. electronic component with the Win Source Part Number 1221721-MER1S1212SC is a 1W isolated module with 88.5% efficiency manufactured by Murata Power Solutions Inc.

  • Series: MER1
  • Packaging: Tube
  • Mounting Style: Through-Hole
  • Operating Temperature Range: -40°C to 85°C
  • Voltage Isolation: 1kV
  • Output Voltage: 12V
  • Current Output: 84mA
  • Size: 0.77" L x 0.24" W x 0.40" H (19.7mm x 6.2mm x 10.2mm)
  • Application: ITE (Commercial)
  • Supply: Limited
  • Popularity: Medium
